A60 Fireproof Side Scuttle

A60 Fireproof Side Scuttle

This product is a kind of fire resistant side scuttles made with steel, aluminum, stainless steel. It can be installed by welded or bolted. This fire proof side scuttle is applicable for accommodations with required fire rating A60. We can offer relevant certificates about this side scuttle like CCS, ABS, DNV, GL etc.

Drawing and specifications:

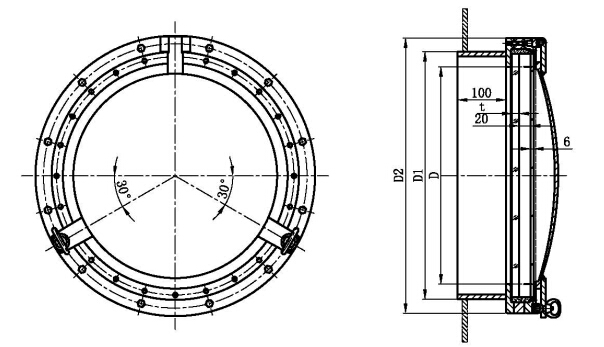

Drawing of A60 Fireproof Side Scuttle

Nominal size	Opening size of bulkhead	External size	Glass thickness		Weight (kg)
Nominal size	Opening size of bulkhead	External size	Type A	Type B	Weight (kg)
200	253	330	10	8	22.1
250	303	380	12	8	29.1
300	363	430	15	10	35.2
350	413	480	15	12	45.8
400	463	530	19	12	55.2
450	513	580	19	15	72.2

Identification example:

Welded A60 fireproof side scuttle, clear size 450mm-----A60 welded fireproof side scuttle 450

Product displaying:

A60 Fireproof Side Scuttle

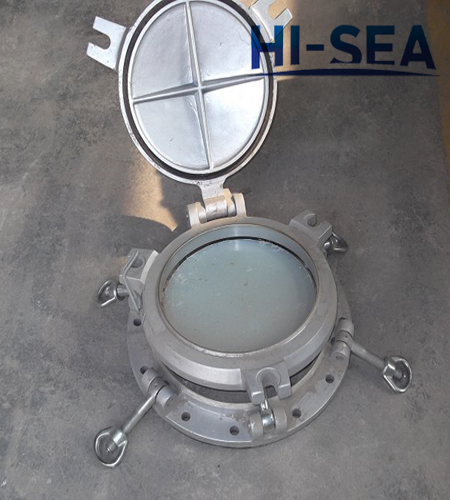

A60 Bolted Fireproof Marine Porthole

A60 Fireproof Side Scuttle

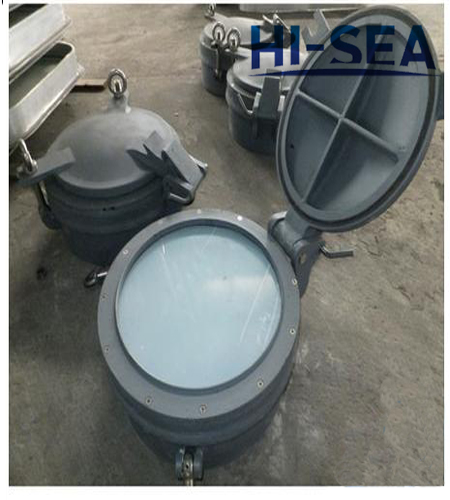

A60 Fire Proof Porthole

Certificates:

A60 Fireproof Side Scuttle
