A60 Welded Fireproof Side Scuttle

[Search Related Products]

A60 Welded Fireproof Side Scuttle

A60 Welded Fireproof Side Scuttle

This product is a kind of welded fire resistant side scuttles made with steel, aluminum, stainless steel. This welded fire proof side scuttle is applicable for accommodations with required fire rating A60. Our company promise to provide marine fireproof side scuttles with the best quality. We can offer relevant certificates about this side scuttle like CCS, ABS, DNV, GL etc.

Drawing and specifications:

A60 Welded Fireproof Side Scuttle

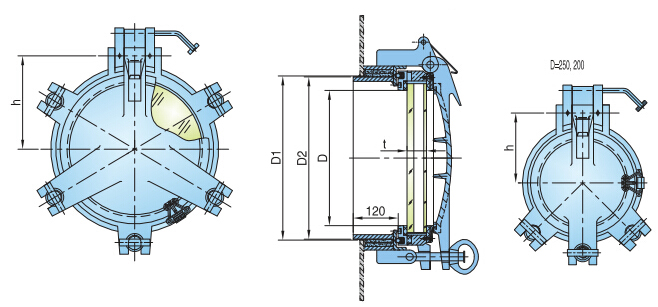

Drawing of A60 Welded Fireproof Side Scuttle

mm

Nominal size

D

Size of B. H. opening

D1

External size

D2

Glass thickness

Heavy

Medium

200

253

250

15+22A+6

15+22A+6

250

308

305

15+22A+6

15+22A+6

300

363

360

15+22A+6

15+22A+6

350

413

410

15+22A+6

15+22A+6

400

463

460

19+22A+6

15+22A+6

450

513

510

19+22A+6

15+22A+6

Identification example:

A60 Welded fireproof side scuttle with clear size of 450mm-----A60 welded fireproof side scuttle 450

Product displaying:

A60 Welded Fireproof Side Scuttle

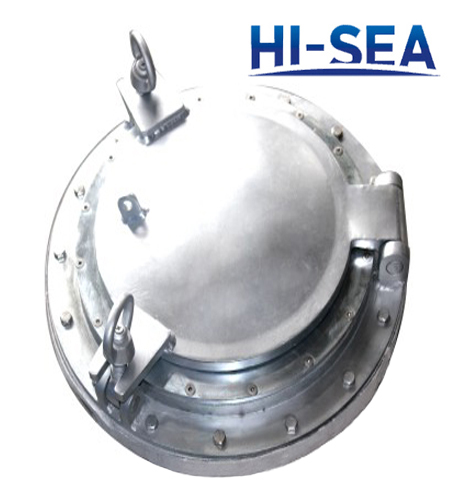

A60 Welded Fixed Fireproof Side Scuttle

A60 Welded Fireproof Side Scuttle

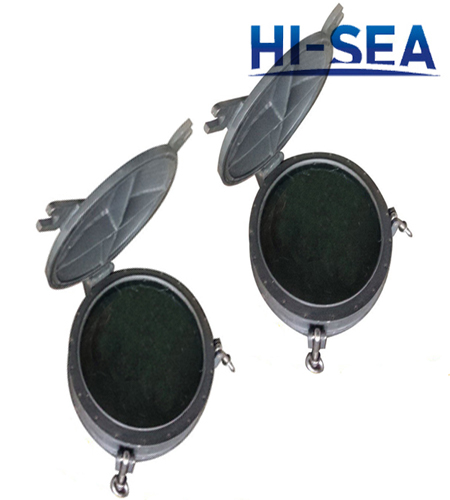

A60 Welded Fire Resistant Opening Side Scuttle

Certificates:

A60 Welded Fireproof Side Scuttle
