Type D Cockle Composite Rock Wool Ceiling

Type D Cockle Composite Rock Wool Ceiling

Our company is specialized in manufacturing and exporting marine decoration material. To guarantee good quality, we follow ISO9000 standards to inspect our products. As one kind of ship decoration materials, composite rock wool panel is widely used as wall panel and ceiling board of various vessels. This one is the type D cockle composite rock wool ceiling board. The fire resistant rating is B-15 or B-0. Certificates like ABS CCS, BV, KR and DNV can be offered according to customers’ requirements.

Features:

1. Ship ceiling board

2. Fire protecting rating: B-0, B-15

3. Thickness: 25mm, 75mm

4. Normal width: 300mm

5. Length is customized, (max. 3900mm)

6. Surface finish: PVC film or galvanized steel sheet

7. Core material: rock wool

8. OEM service available

*Specifications:*
Model	T25D	T75DXY
Fire protecting rating	B-0	B-15
Weight	7.9kg/㎡	12.7 kg/㎡
Thermal transmittance	1.36Kcal/m²h·°C	0.40 Kcal/m²h·°C
Core material	Rock wool 80kg/m³	Rock wool 80/150kg/m³
Surface finish	PVC film(150μ,low flame spread) or galvanized steel sheet
Thickness	25mm	75mm
Width	300mm	300mm
Length	Required length (max. 3900mm)
Dimension	25/75mm( t )×300mm( w )×length (max.3900mm)
Tolerances	Thickness(-1,0), Width(-1, 0), Length±3

Product displaying:

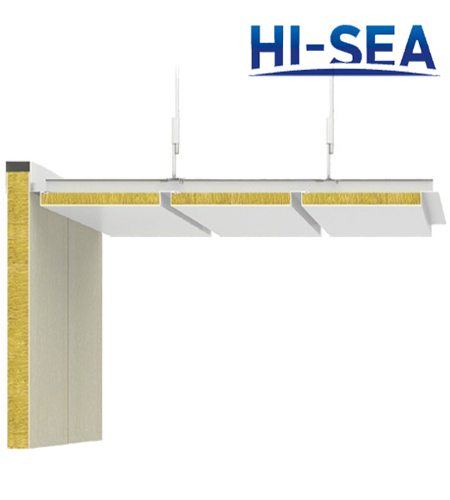

Type D Cockle Composite Rock Wool Ceiling Board

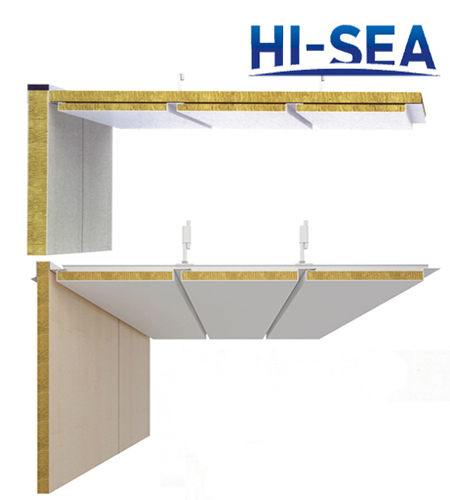

Type D Cockle Composite Rock Wool Ceiling

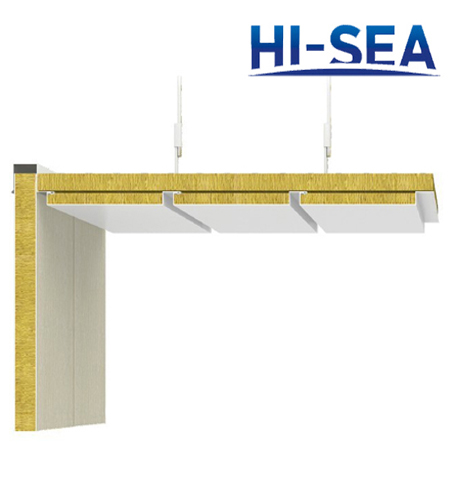

Type D Cockle Composite Rock Wool Ceiling Panel
