Marine Corner Panel

Marine Corner Panel

This product marine panel is made of PVC/PET film or galvanized steel sheet on the surface and rock wool in the core. It is used for the decoration of corners of vessels. In this way, we call it marine corner panel. We supply this product with good quality and competitive price. Different types of this corner panel are available. Certificates like CCS, ABS, BV, DNV, and NK can be offered according to customers’ request. For more information, please contact with us.

Features:

1. Ship corner panel

2. Type: type M external corner, type C external corner, type A external corner, type A external round corner

3. Surface finish: PVC/PET film or galvanized steel sheet

4. Core material: rock wool

5. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

*Specifications:*
Product No.	HS-CP001	HS-CP002	HS-CP003	HS-CP004
Type	Type M external corner	Type C external corner	Type A external corner	Type A external round corner
Fire protecting rating	B-0	B-0	B-0	B-0
Sound reduction	-dB	-dB	-dB	-dB
Thermal transmittance	1.13 Kcal/m²h·°C	1.13Kcal/m²h·°C	1.13 Kcal/m²h·°C	1.13Kcal/m²h·°C
Tolerances	width(-1, 0), length±1, thickness(-1, 0)
Core material	Rock Wool 150kg/m³
Surface finish	PVC/PET film (low flame-spread)or galvanized steel sheet

Product displaying:

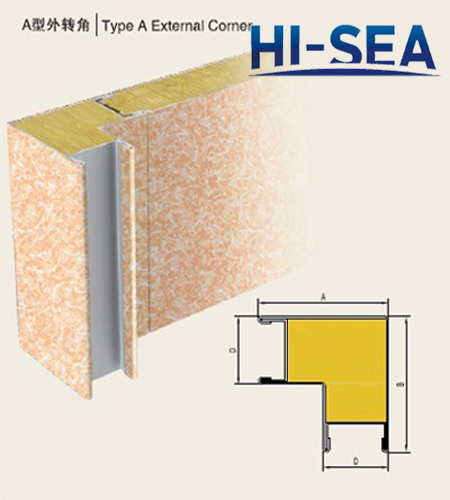

Marine Type A Corner Panel (Type A external corner)

Marine Fireproof Corner Panel (Type A external round corner)

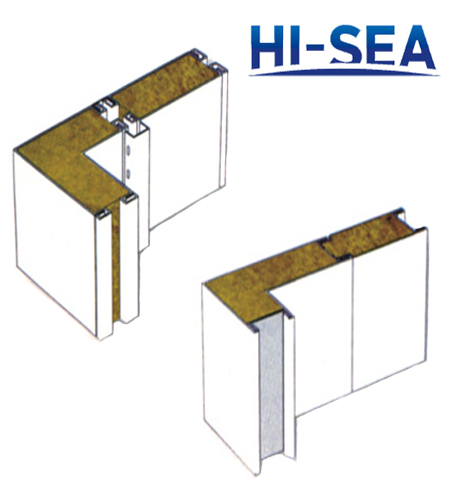

Marine Corner Panel

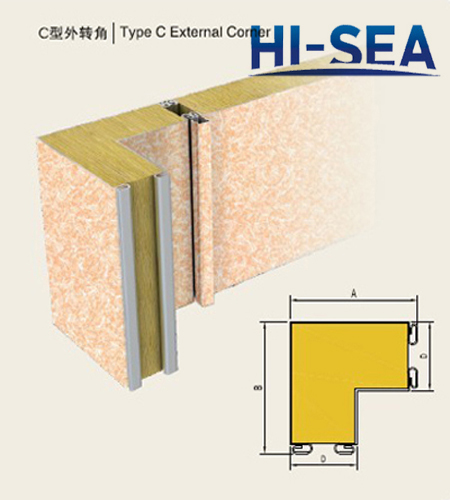

Mairne Type C Corner Panel

Marine Corner Panel

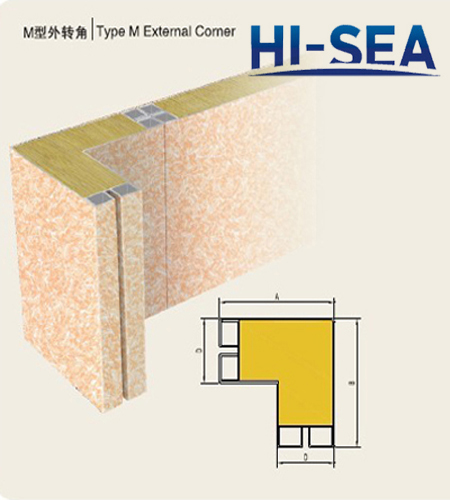

Marine External Corner Panel (Type M)
