Type A Composite Rock Wool Wall Panel

Type A Composite Rock Wool Wall Panel

As a kind of marine decoration material with good quality and perfect function, our type A composite rock wool panel is suitable for the decoration of wall and ceiling of cabin and bathroom for various vessels. This marine type A wall panel consists of two layers of PVC film/galvanized steel sheet and a high quality rock wool core. Our type A rock wool wall panel is smooth and looks elegant. It meets the requirements of certificates such as CCS, BV, DNV, KR, etc.

Features:

1. Ship composite rock wool wall panel

2. Model: B50A, B30A, B25A

3. Fire protecting rating: B-15, B-0

4. Thickness: 50mm, 30mm, 25mm

5. Width: 550mm

6. Length is customized, (max.3500mm)

7. Certificates: CCS, BV, DNV, NK, RINA, etc.

Specifications:

Model

B50A

B30A

B25A

Fire protecting rating

B-15

B-15/B-0

B-15/B-0

Thickness

50mm

30mm

25mm

Width

550mm

Length

Required length, (max. 3500mm)

Dimension

50/30/25mm( t )550mm( w )length (max.3500mm)

Tolerances

thickness(-1, 0), width(-1, 0), length(-1, 0)

Weight

16.0kg/m2

13.5kg/m2

12.9kg/m2

Sound reduction

33dB(A)

31dB(A)

30dB(A)

Thermal transmittance

0.58Kcal/m2hC

1.10Kcal/m2hC

1.14Kcal/m2hC

Surface finish

PVC film(150,low flame spread) or galvanized steel sheet

Core material

Rock wool 150kg/m3

Product displaying:

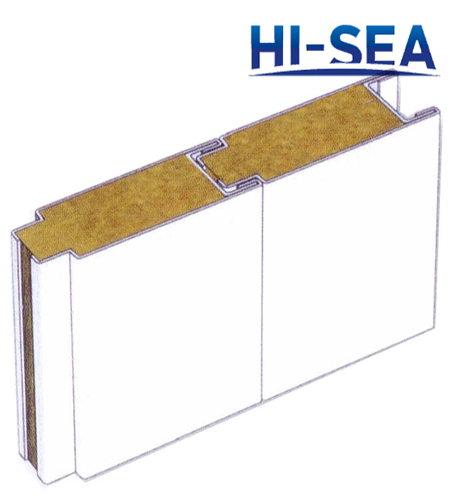

Type A Composite Rock Wool Wall Panel

Marine Type A Composite Rock Wool Wall Board
