Marine Type F Composite Rock Wool Ceiling

[Search Related Products]
Marine Type F Composite Rock Wool Ceiling

Marine Type F Composite Rock Wool Ceiling

This product is the type F composite wool ceiling used in the cabin and deck house of various vessels. It is made of PVC film or galvanized steel sheet on the surface and rock wool in the core. This marine composite rock wool ceiling is fire resistant and its fire protecting rating is B-0 or B-15. It has a light weight and perfect function. It is approved by certificates CCS, BV, NK, GL, etc.

Features:

1. Marine composite rock wool ceiling board

2. Model: T25F, T50F

3. Fire resistant rating: B-0, B-15

4. Thickness: 25mm, 50mm

5. Normal width: 600mm

6. Length: 600mm

7. Certificates: CCS, BV, DNV, KR, etc.

8. OEM service available

Specifications:

Model

T25F

T50F

Fire protecting rating

B-0

B-15

Weight

6.8kg/m2

8.8kg/m2

Thermal transmittance

1.36Kcal/m2h㡤C

0.89Kcal/m2h㡤C

Core material

Rock wool 80kg/m3

Surface finish

PVC film(150,low flame spread) or galvanized steel sheet

Thickness

25mm

50mm

Width

600mm

Length

600mm

Dimension

25/50mm( t )600mm( w )600mm(l)

Tolerances

thickness (-1, 0), width (-1, 0), length 3

Product pictures:

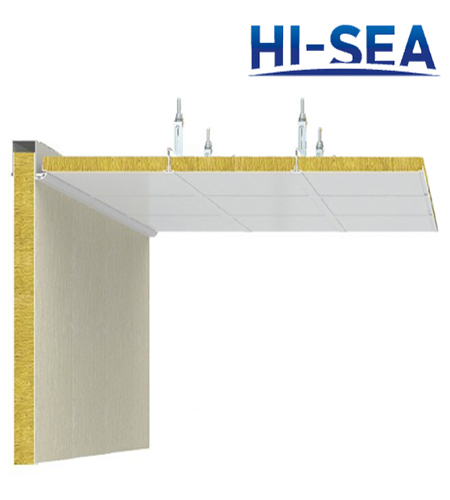

Marine Type F Composite Rock Wool Ceiling

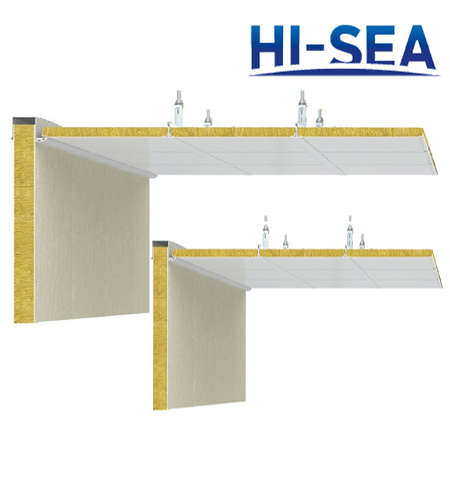

Marine Type F Composite Rock Wool Ceiling Board
