Pneumatic Chain Hoist

[Search Related Products]

Pneumatic Chain Hoist

Pneumatic Chain Hoist

The main productions we can provide including pneumatic chain hoist, low headroom pneumatic hoist, mini pneumatic chain hoist and monorial pneumatic hoist. According to different model, the hoist capacity ranges from 125kg to 30 tons. A certain pressure of compressed air can drive it to work with low energy consumption and high efficiency. And it is the essential equipment for safe production, improving efficiency and reducing cost of factory.


Advantages:

1. Precision positioning. It can avoid the problem of inaccurate positioning of ordinary lifting equipment.

2. Adjustable lifting speed. Stepless speed regulation is available when lifting or lowering.

3. Run fast. The speed of it is 3 times of electric hoists and 5 to 10 times of manual chain hoist.

4. Convenient operation. The rod control is easy to operate when lifting or lowering, which can quickly respond to handle the output instructions.

5. Clean, safe and reliable. Internal lubrication system eliminate the air pollution, and make it suitable for tide, wet, dust and other harsh working environment.

6. Save effort in transport. Beside it beautiful appearance, it has advantages of small size, light weight, easy to carry, solid structure, reliable operation and less maintenance than electric hoists.

7. Air outage protection. The brake can directly control the power transmission part to make it lock automatically to prevent the object fall.


Technical Parameters:

Model Capacity Lifting Height No.of chain Working Pressure Motor Output Power Sound Level Air Consumption Lifting Speed Product Weight
t m Mpa kw db m3/min m/min kg
HS-125 0.125 3 1 0.6 0.75 76 1 20 23
HS-250 0.25 3 1 0.6 0.75 76 1 15 23
HS-500 0.5 3 1 0.6 0.75 76 1.3 10 23
HS-980 0.98 3 2 0.6 0.75 76 1.3 5 29.5
HS-1T 1 3 1 0.6 1 77 1.5 4 35
HS-2T 2 3 2 0.6 1 77 1.5 2 41
HS-3T 3 3 1 0.6 3.5 79 5.5 3.5 110
HS-5T 5 3 2 0.6 3.5 79 5.5 2 122
HS-6T 6 3 2 0.6 3.5 79 5.5 1.8 122
HS-10T 10 3 4 0.6 3.5 79 5.5 1.2 145
HS-16T 16 3 3 0.6 3.5 79 5.5 0.8 -
HS-20T 20 3 4 0.6 3.5 79 5.5 0.6 -

Structure of Pneumatic Chain Hoist:

Pneumatic Chain Hoist

Pneumatic Chain Hoist

Pneumatic Chain Hoist

Pneumatic Chain Hoist with Suspension Hook

Pneumatic Chain Hoist

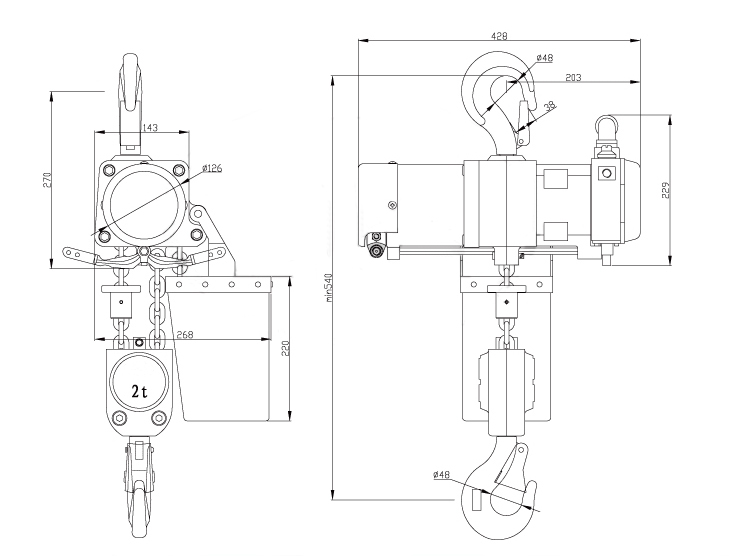

Sketch of Pneumatic Chain Hoist with Suspension Hook

Pneumatic Chain Hoist

Pneumatic Chain Hosit with Trolley

Pneumatic Chain Hoist

Sketch of Pneumatic Chain Hoist with Trolley

Pneumatic Chain Hoist

Low Headroom Pneumatic Chain Hoist

Pneumatic Chain Hoist

Sketch of Low Headroom Pneumatic Chain Hoist

Pneumatic Chain Hoist

Explosion-proof Pneumatic Chain Hoist

Pneumatic Chain Hoist

Sketch of Explosion-proof Pneumatic Chain Hoist

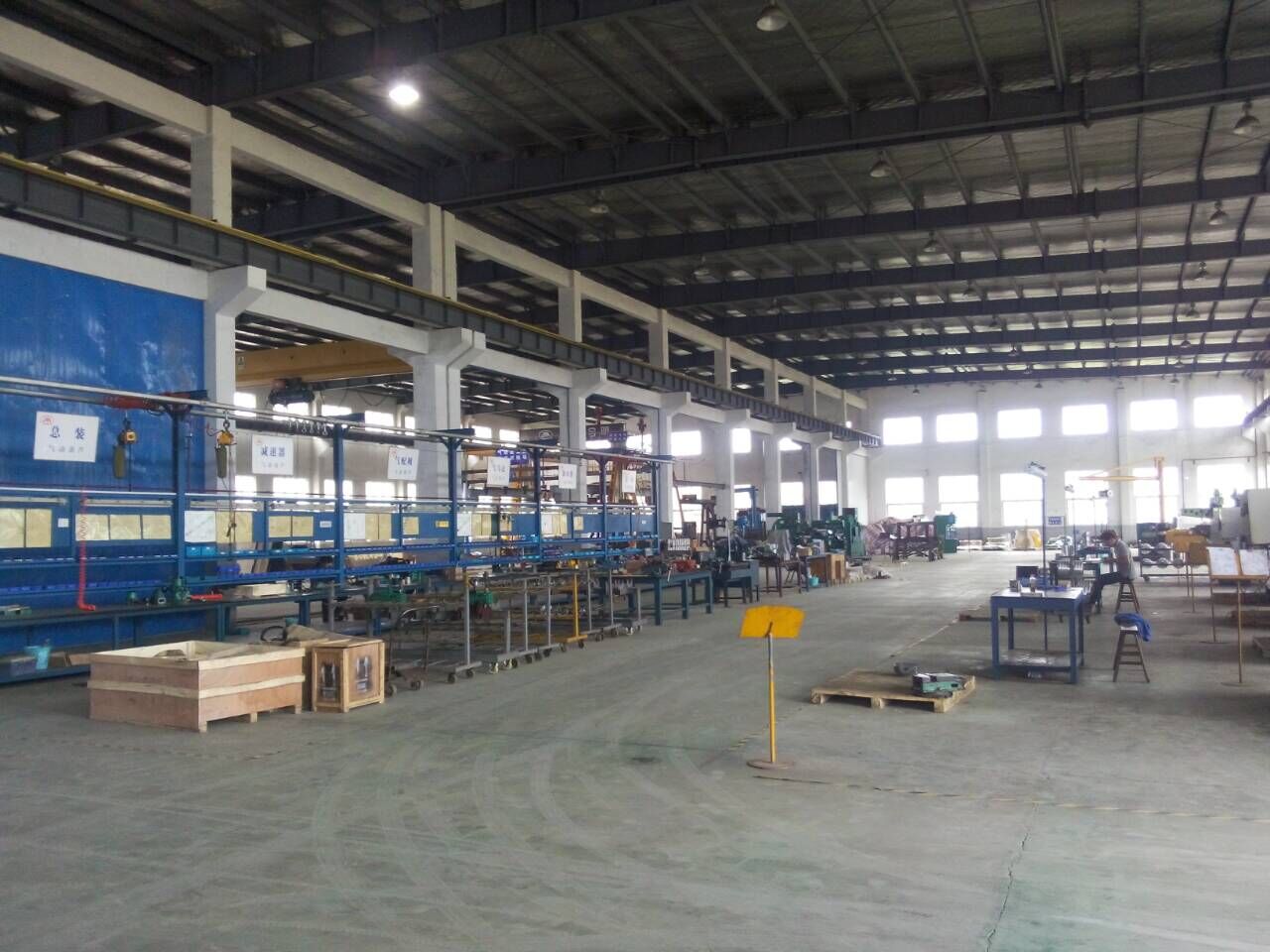

Our Factory£º

Pneumatic Chain Hoist

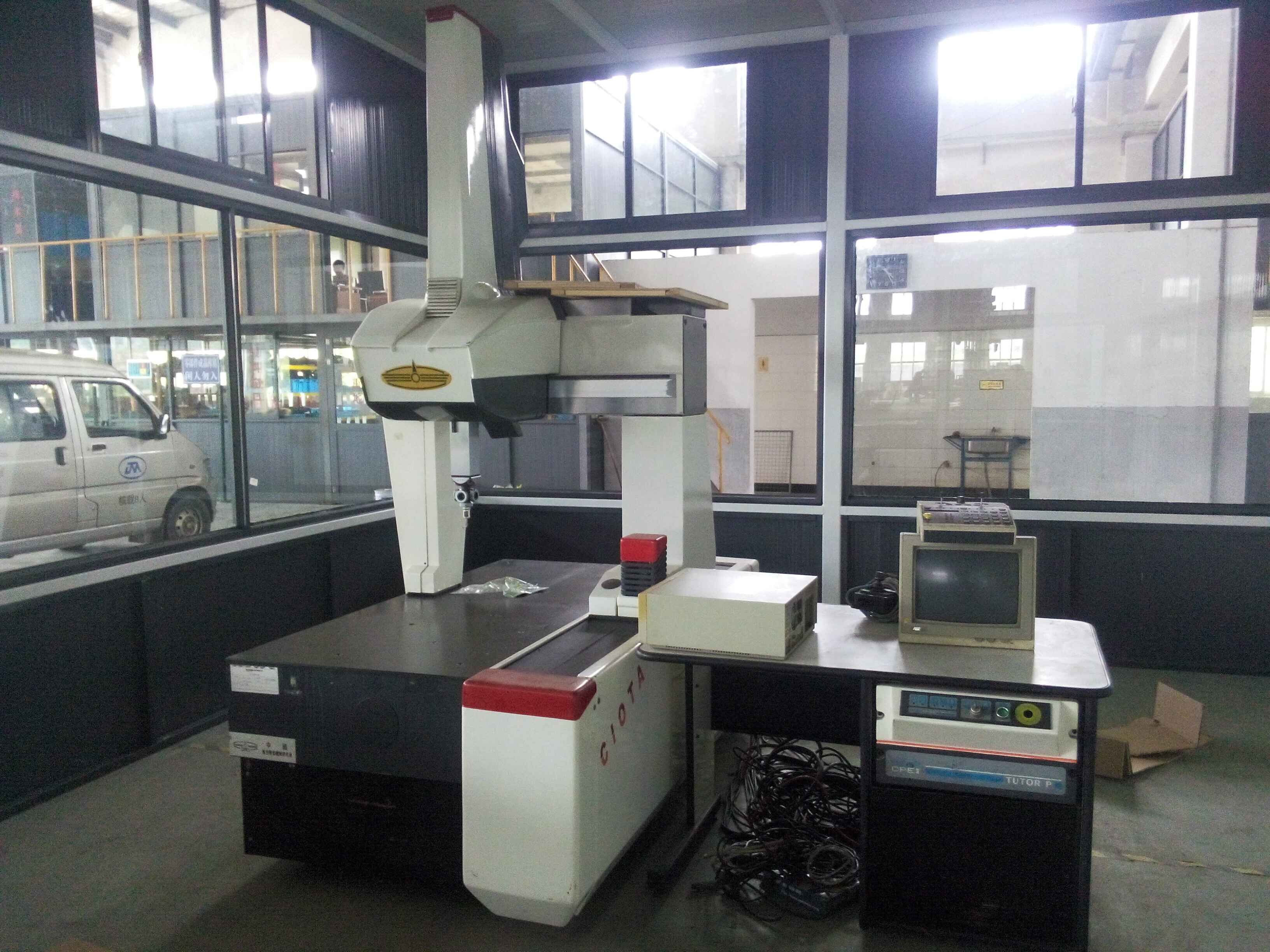

Testing Equipment£º
