10T Industrial Pneumatic Hoist with Trollely

10T Industrial Pneumatic Hoist with Trolley

According to different model of pneumatic hoist, the capacity of it ranges from 125kg to 30 tons. It can avoid the problem of inaccurate positioning of ordinary lifting equipment. Internal lulbrication system of it eliminate the air pollution, and make it suitable for tide, wet, dust and other harsh working environment. Beside it beautiful appearance, it has advantages of small size, light weight, easy to carry, solid structure, reliable operation and less maintenance than electric hoists.

Product Details:

1. Model: 10T pneumatic air chain hoist with trolley

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 3.5kw

7. Rated Load speed: 1.2m/min

8. Air Consumption: 5.5m³/min

9. Packaging: Gunny bag or carton then on steel pallet

10. Special specification and marks can be made according to order quantity

Specification:

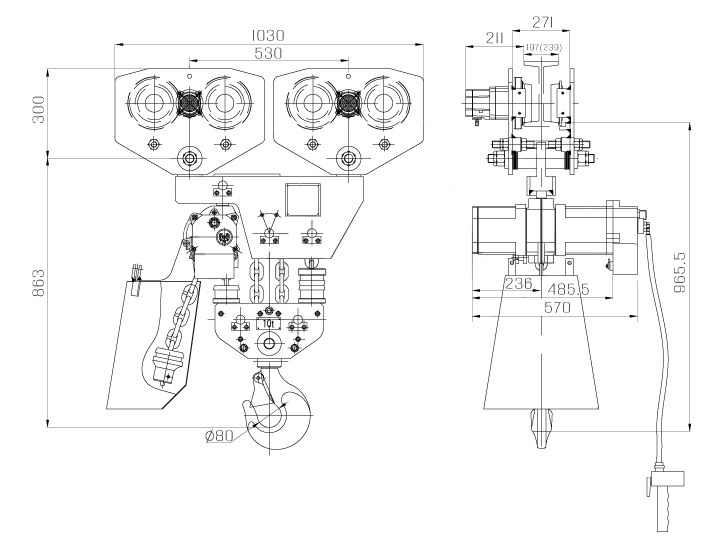

Sketch of 10T industrial pneumatic hoist with trolley
