160kg Wire Rope Pneumatic Air Balancer

160KG Wire Rope Pneumatic Air Balancer

According to different model, the hoist capacity of wire rope pneumatic air balancer ranges from 60kg to 440 kg. Through the move of cylinder piston and transmission mechanism, the pressure of compressed air can be turned into rotary mechanical energy, then the output torque drive the lifting operation to work.. By balancing valve and manual switch to achieve lifting and balancing of objects. The elestic floating properties help workers to realise free lifting or down, and moving of heavy objects on the three-dimensional space.

Product Details:

1. Model: 160kg wire rope pneumatic air balancer

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.7 Mpa

5. Lifting Height: 2m

6. Capacity:1 60kg

7. Air Consumption: 0.35m³/min

8. Product Weight: 58kg

9. Packaging: Gunny bag or carton then on steel pallet

10. Special specification and marks can be made according to order quantity

With overload protection, expired, no-load protection, etc.

The security protection function.

Specification:

Model

Capacity

ŽÁ

L

A1

A2

kg

mm

mm

mm

mm

HS-60

60

165

405

245

400

HS-100

100

260

405

290

450

HS-160

160

260

520

290

450

Technical Parameters:

Model

Capacity

Lifting Height

Working Pressure

Air Consumption

Rated Load Speed

Weight

kg

m

mpa

m³/min

m/min

kg

HS-60

60

1.4

0.7

0.27

58

25

HS-100

100

1.8

0.7

0.33

30

37

HS-160

160

2

0.7

0.35

20

56

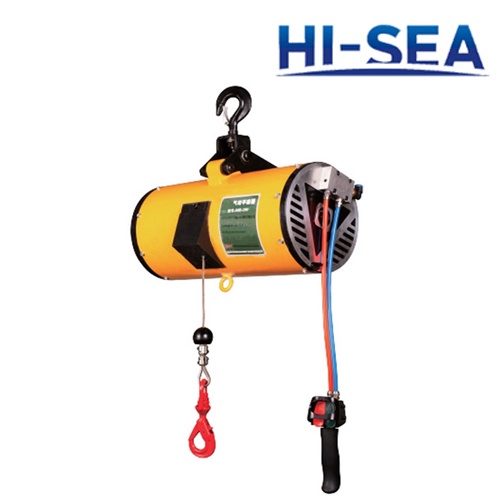

160kg Wire Rope Pneumatic Air Balancer

Sketch of single type wire rope air balancer
