Air Motor Trolley

Air Hoist Trolley

Air motor trolley can turn the pressure of compressed air into rotary mechanical energy. Then the output torque drive the planetary reduction to work. The running mechanism can realize the horizontal move of lifting objects through control pneumatic motor and planetary gear reducer.

Motor, piston and other precision components are manufactured by high-precision machining centers. Planetary gears are made from high-quality steel that has been quenched and tempered.

Product Details:

1. Model: Air motor trolley

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 0.15-0.25kw

7. Capacity:1-20T

8. Air Consumption: 0.3-1.3m³/min

9. Trolley Running Speed: 2-12m/min

10. Product Weight:28-260kg

11. Packaging: Gunny bag or carton then on steel pallet

Advantages:

1. Suitable for complex environment and dangerous situation.

2. Simple installtion

3. Easy maintenance, long service life.

4. Curve walk is avaliable.

5. Falling Prevention.

Technical Parameters:

Model	Capacity	Working Pressure	Motor Output Power	Air Consumption	Product Weight	Running Speed
Model	t	Mpa	kw	m³/min	kg	m/min
HST-1	1	0.6	0.15	0.3	28	12
HST-2	2	0.6	0.15	0.45	28	9.5
HST-3	3	0.6	0.25	0.45	63	9.5
HST-5	5	0.6	0.25	0.6	130	7
HST-6	6	0.6	0.25	0.6	130	6
HST-10	10	0.6	0.25	1	260	4
HST-16	16	0.6	0.25	1.3	-	2
HST-20	20	0.6	0.25	1	-	2

Specification:

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	Φ(mm)
HST-1	320	154	205	75	100	80-116	36	148	90
HST-2	320	154	205	75	100	80-116	36	148	90
HST-3	428	196	285	95	150	110-146	71	148	134
HST-6	500	236	354	115	185	197-236	95	148	165

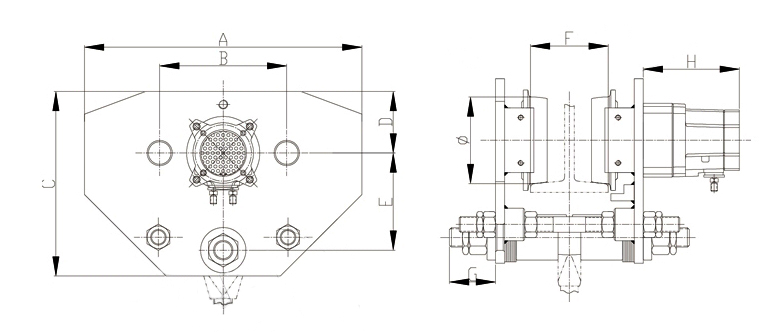

Sketch of Air Motor Trolley
