1T Pneumatic Chain Hoist with Trolley

[Search Related Products]

1T Pneumatic Chain Hoist with Trolley

1T Pneumatic Chain Hoist with Trolley

The main productions we can provide including pneumatic chain hoist, low headroom pneumatic hoist, mini pneumatic chain hoist and monorial pneumatic hoist.Pneumatic chain hoist consist of lifting mechanism, running mechanism and air-supply system. Compressed air is the power source of air-supply system, which can control the lifting and travelling of pneumatic hoist. Internal lulbrication system eliminate the air pollution, and make it suitable for tide, wet, dust and other harsh working environment.

Product Detailsú║

1. Model: 1T pneumatic chain hoist with trolley

2. Power source: Compressed air

3. Usage: Hoist

4. Working Pressure: 0.6 Mpa

5. Lifting Height: 3m

6. Motor Output Power: 1kw

7. Rated Load speed: 4m/min

8. Air Consumption: 1.5m³/min

9. Packaging: Gunny bag or carton then on steel pallet

10. Special specification and marks can be made according to order quantity

Specificationú╗

Model

Capacity

Trolley carries weight

No.of chain

Lifting speed

Trolley run speed

Weight

t

t

m/min

m/min

kg

HS-1T

1

1

1

4

12

35

HS-2T

2

2

2

2

9.5

41

1T Pneumatic Chain Hoist with Trolley

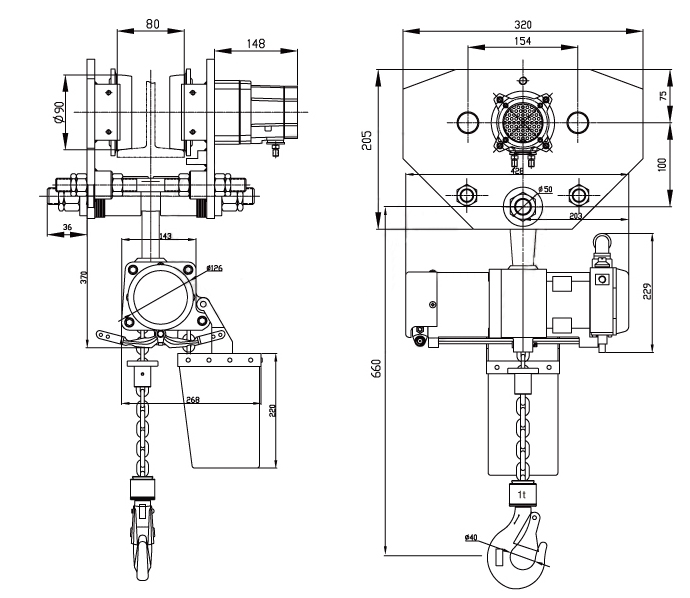

Sketch of 1T Pneumatic Chain Hoist with Trolley

1T Pneumatic Chain Hoist with Trolley

1T Pneumatic Chain Hoist with Suspension Hook
