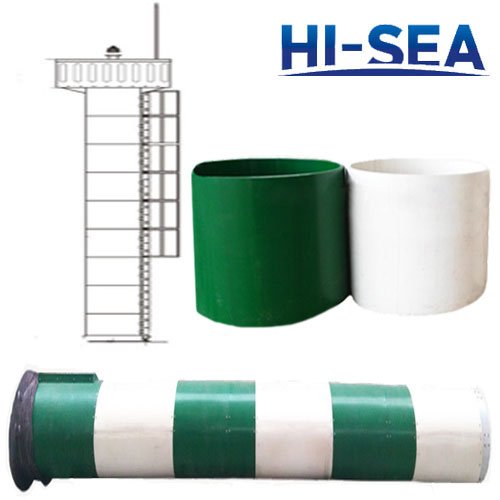

8m UHMWPE Light House

8m UHMWPE Light House

Lighthouse is an artificial marker that used to help guide ship’s navigation, positioning, marking obstruction and showing a warning. It is composed of pillar, working platform, foundation and other parts. The working platform is equipped with signal lamp which sends light signals for passerby ships. The pillar is used to support the working platform.

Features of UHMWPE Light House

1. Maintenance Free: one-time installation, no need to maintain in a long time(except the lamp)

2. Free Mechanical Construction: convenient transportation and installation, no need of large construction machinery

3. Anti-typhoon: can withstand grade 17 hurricane(wind speed 60m/s)

4. Long Service Life: ＞30years

5. Strong and Convenient Connection: all parts are connected by stainless steel 316L bolts

Material: Ultra High Molecular Weight Polyethylene Pipe

Application: wharf, reef, dam,bridge, port etc.

Color: Green and White or as required

Height: 8m high or other heights as our customer required

Certificate: ISO9001/TUV/CE/BV

Our Service: we supply both the standard products and the customized products produced according to customer’s special requirements. We aim to provide the best quality products and the excellent service. If you have any questions, please feel free to contact us.

Specification and Parameters of UHMWPE Lighthouse for Reference

Type	Pillar Height(m)	Length of Each Segment(m)	Weight of Each Segment(kg)	Pillar Diameter(mm)
HSD-4500	4.5	0.75	84	800
HSD-5200	5.2	0.75	84	800
HSD-6000	6.0	0.75	84	800
HSD-8000	8.0	1.0	153	1000
HSD-9000	9.0	1.0	153	1200
HSD-1100	11.0	1.0	153	1200
