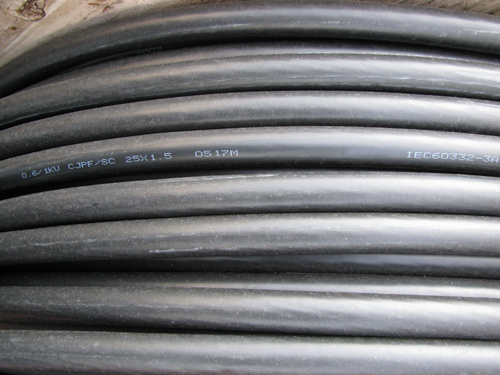

Marine Telecommunication Cables

Marine Telecommunication Cables

Applications:

Marine communications cable is intended for signal transmission and control systems in a variety of ship communications, computer , information processing equipment.

Construction:

1. Conductor: tinned copper

2. Insulation: XLPE/EPR

3. Tape

4. Individual screen: tinned copper wire braided

5. Tape

6. Inner sheath: PO (SHF1, SHF2)

7. Screen/Armored: tinned copper wire braid

8. Outer sheath: PO (SHF1, SHF2)

Marine Cable Flammability Features:

DA: Single cable flame retardant

SA: Bunched cable flame retardant

SC: Bunched cable flame retardant, halogen-free, low-smoke, low-toxicity.

NC: Fire resistant,halogen-free, low-smoke, low-toxicity.

Specifications:

Paires: 1, 2, 3, 4, 7, 10, 14,19, 24, 30, 37,48

Nominal Cross-section Areas: 0.75 mm²,1 mm², 1.5mm²

Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA,RS; 85℃

We will provide you with the best quality, competitive prices and satisfactory service.

For more enquiries ,please contact freely at cable@hiseamarine.com
