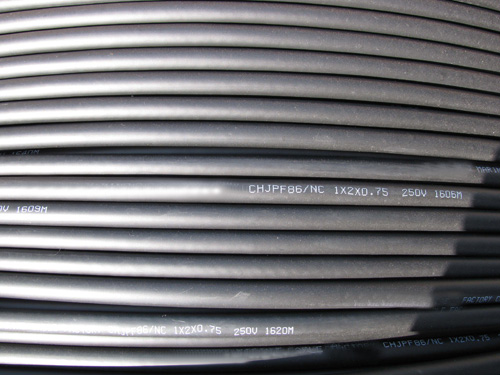

Marine Power Cable

Marine Power cable:

SPECIFICATION & STANDARDS

IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359

IEC60092 351 IEC60332-1 IEC60332-3Cat.A

IEC61034-2 IEC 60754-2 3A


Construction:

Conductor: tinned copper

Insulation: EPR/XLPE

Filler

Tape

Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2)

Armored: tinned copper wire braid

(Galvanized steel wire braid)

Outer sheath: PVC/PCP/PO (SHF1, SHF2)


Flammability Features:

DA: Single cable flame retardant

SA: Bunched cable flame retardant

SC: Bunched cable flame retardant,halogen-free, low-smoke, low-toxicity.

NC:Fire Resistant,halogen-free, low-smoke, low-toxicity.


Specifications:

Cores: 1, 2, 3, 4, 5

Nominal Cross-section Areas:1 mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2,

35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2.


Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA,RS,KR; 90¡æ



Main characteristics£º
Operating temperature -15¡æ¡«+90¡æ
Rated voltage 0.6/1KV
Test voltage
3.5kV/5min
Flame spread test on bunched cable
Cat A
Smoke density of completed cable
¡Ý60%


Marine Power Cable
