JIS C3410 Shipboard Telephone Cable

JIS C3410 Shipboard Telephone cable


JIS C3410 Shipboard Telephone cable application

This cable is intended for telephone and instrumentation usage and fixed installation.


JIS C3410 Shipboard Telephone cable standards


C Design guide : JIS C 3410(1999/2010)
C Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
C Cold bend/impact : CSA 22.2 No. 03 (-35 ) (Cold Type)

C Max. conductor temperature : 60


JIS C3410 Shipboard Telephone cable Model


250V TTY, FA-TTY
250V TTYC, FA-TTYC

250V TTYCY, FA-TTYCY

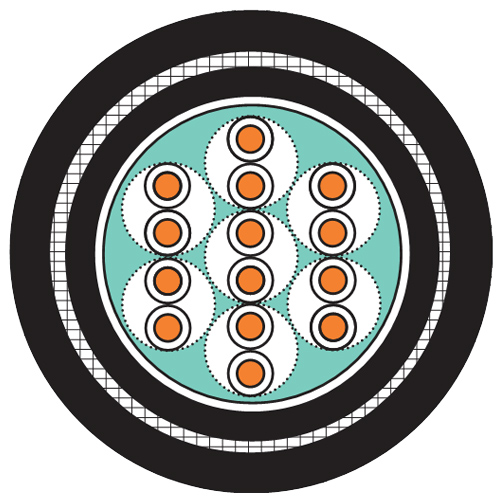

JIS C3410 Shipboard Telephone cable construction

JIS C3410 Shipboard Telephone Cable

Classification Code Construction details
Conductor TT Tinned Copper Wire JIS C3410
Insulation Y PVC as per JIS C 3410
Armor C Galvanized steel wire braided
CB Tinned copper wire braided
Paint The white paint should be painted uniformly
Covering Y PVC as per JIS C 3410
Color: Black

Recommendations
Minimum cable bending radius
The internal radius of cable bends which are not subjected to movements by expansion, is not to be less than :
6 times the external diameter of cable
Cable which are subjected to movements by expansion and the high voltage cable are to be bent to a form of at least 12 times cable diameter.
Installations temperature
Minimum recommended temperature of installations :
-10C Ship wiring cable with PVC sheath
-20C Elastomeric on/off shore cables
Installations pulling force
The cable pulling force can be estimated, as a maximum limit :5Kp per mm2 conductor area in the cable.Additional tension will be supplied from the braid and the insulation and sheathing compound.


Specifications:

Cores: 1, 2, 3, 4, 5, 7, 10, 12, 14, 16,19, 24, 27, 30, 33, 37.

Nominal Cross-section Areas: 0.75 mm2,1 mm2, 1.5mm2, 2.5mm2,


Certificates:

CCS,LR,ABS,DNV,BV,GL,NK,RINA; 85
