WEXD Low-noise Side-wall Axial Flow Fan

[Search Related Products]

WEXD Low-noise Side-wall Axial Flow Fan


Applications :


WEXD series fan consists of the advanced sweep forward blade and special fan motor of low noise outer rotor or inner rotor. It is direct drive. The design of square case is easy to install on the concrete wall, brick wall or light steel pressed wall panel. The structure of square rain cover is firm and in good-looking appearance. It has the features of low noise, large air volume, run reliably, wide range of performance parameter and easy to install. It is widely applied in sidewall ventilation of workshop of factories and mines, project of civil and commercial construction. According to the requirement of conveying medium, it can be made into corrosion-resistant type (WEXD-F) and anti-explosion type.


WEXD series fan is generally used in exhaust air of side-wall and equipped with 45ˇărain cover (or 60ˇăspecially manufactured) and insect proof net (it can prevent insects into the workshop following the light at night). According to requirements, it can be made into sidewall fan model HY-DWSP and equipped with 45ˇărain cover (prevent wind, rain, dust) and insect proof net (it can prevent insects into the workshop following the light at night).


Optional accessories: gravity type backdraft air damper (it can ensure to isolate the workshop from outside when fan is off), please specify when ordering.

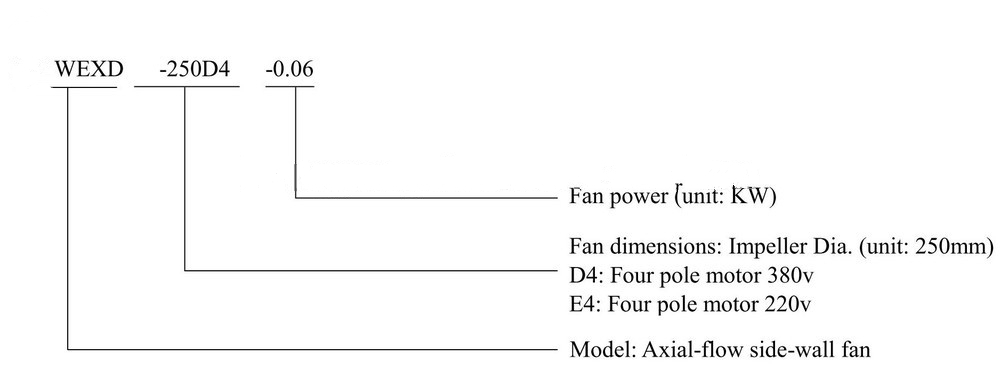

Model Explanation :


WEXD Low-noise Side-wall Axial Flow Fan


Performance Parameter :


Model Speed
(r/min)
Power
(Kw)
Voltage
(V)
Air Volume
(m3 /h)
Pressure
(Pa)
WEXD-250D4 1450 0.06 380 1700 50
WEXD-250E4 1450 0.06 220 1500 50
WEXD-300D4 1450 0.09 380 1800 50
WEXD-300E4 1450 0.09 220 1600 50
WEXD-350D4 1450 0.12 380 2800 50
WEXD-350E4 1450 0.12 220 2200 45
WEXD-400D4 1450 0.18 380 3800 50
WEXD-400E4 1450 0.18 220 3600 50
WEXD-450D4 1450 0.25 380 6500 50
WEXD-450E4 1450 0.25 220 6300 50
WEXD-500D4 1450 0.37 380 7800 50
WEXD-500E4 1450 0.37 220 7600 50
WEXD-550D4 1450 0.55 380 9300 50
WEXD-550E4 1450 0.55 220 8300 50
WEXD-600D4 1450 0.75 380 12500 100
WEXD-650E4 1450 1.1 220 16500 100

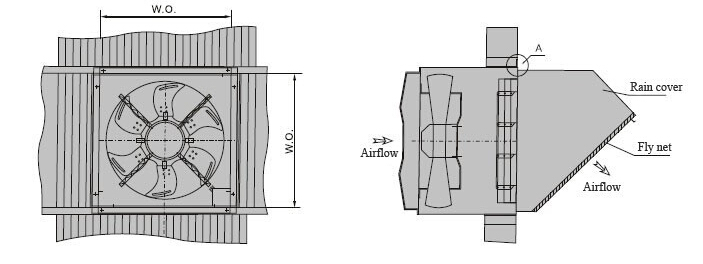

Structure :


WEXD Low-noise Side-wall Axial Flow Fan


Our Certification :


WEXD Low-noise Side-wall Axial Flow Fan
