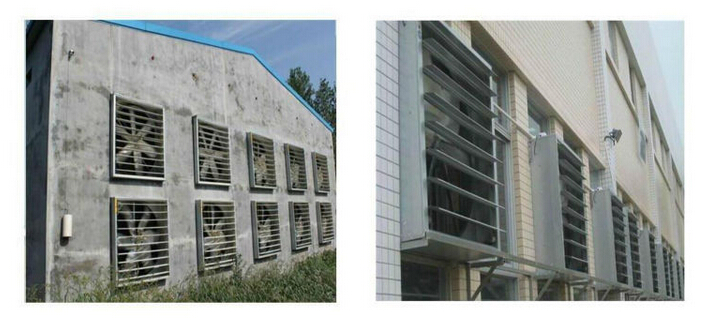

DFBZ Wall Mount Square Axial Flow Fan


Introduction


DFBZ series fan is equipped with special fan motor of low noise and it is direct drive. The complete fan is made into square structure, good-looking appearance and reserve square hole on the wall and easy to install. The gravity type shutter is installed on the air outlet, in order to prevent back flow of outdoor rain and natural wind. It has obvious advantages of firm installation, small vibration, low noise, operating smoothly and steadily. So it is widely used in the wall-type exhaust air of mining and industrial enterprises, civil buildings, gymnastics, animal husbandry, entertainment venues and other places needing wall-type fan.


DFBZ-I has the structure of direct drive and uses inner rotor motor;

DFBZ-II has the structure of belt drive and uses inner motor;

DFBZ-III has the structure of direct drive and uses outer rotor.It can be made into the type of corrosion resistant and explosion proof as customer¡¯s request.


Performance Parameter


Dimension of DFBZ-I Series

Machine No.

D

L

L1

A¡ÁA

B¡ÁB

2.5

260

280

255

320¡Á320

370¡Á370

2.8

290

280

255

350¡Á350

400¡Á400

3.2

330

290

265

390¡Á390

440¡Á440

3.6

37

310

285

430¡Á430

480¡Á480

4

410

350

325

470¡Á470

530¡Á530

4.5

460

360

335

520¡Á520

580¡Á580

5

510

375

350

580¡Á580

640¡Á640

5.6

570

375

350

640¡Á640

700¡Á700

6.3

640

395

370

710¡Á710

770¡Á770


Dimensions of DFBZ-III Series

Machine No.

A

B

C

D

Installation hole

3.5

470

410

380

365

430¡Á430

4

510

450

385

410

470¡Á470

5

610

550

400

510

570¡Á570

6

710

650

430

610

670¡Á670

7

810

750

455

710

770¡Á770

8

910

850

470

810

870¡Á870

9

1010

950

540

910

970¡Á970

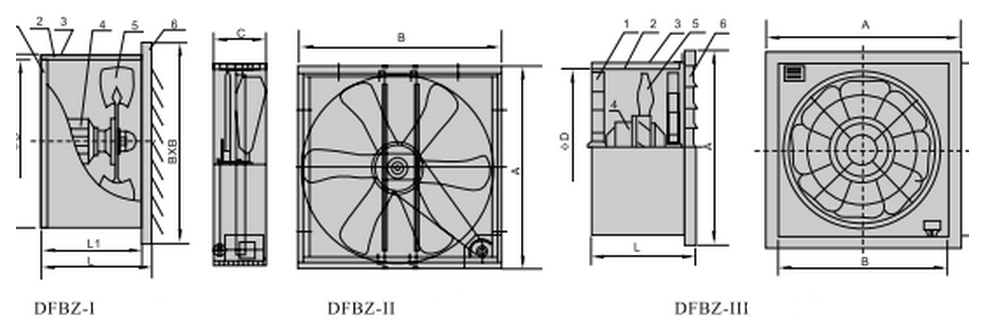

Structure


DFBZ Wall Mount Square Axial Flow Fan




DFBZ Wall Mount Square Axial Flow Fan
