FLJ External Rotor Centrifugal Fan

[Search Related Products]

FLJ External Rotor Centrifugal Fan


Applications

FLJ External Rotor Centrifugal Fan is a centrifugal small AC Blower , It has strong structure , Small size , light weight , rich wind , low noise ,easy operation and with elegant appearance . It's mainly uses for ventilation in auto-control , electronic equipment etc . It can also used for Air mold blowing ete. we have 8 types from 22w to 500w.

Features

Several speed changing active,our products are widely used in refrigeration and ventilation fields,such as

condenser,evaporator,duct fans,ceiling fans.

The Voltage of single phase motor is 120v,60Hz,220-240V,50/60Hz.The voltage of three phases motor is

380V,50/60Hz,or according to customer's requirements.

The protection class of FLJ series air blower is IP44 or IP54.

The using life is over 30000 hours.

The using ambient temperature is from -30~60

Performance Parameter




Type


Voltage

(V)


Frequency

(HZ)


Power

(W)


Current

(A)


Rotational

Speed(RPM)


Flow

(m3/min)



Noise

dB(A)


Pressure

(pa)

85FLJ1

110

50

22

0.18

2300

0.6

<50

50

85FLJ2

220

50

22

0.09

2200

0.3

<50

50

130FLJ1

220

50

85

0.40

2200

3.6

70

280

130FLJ2

110

50

85

0.80

2200

3.6

70

280

130FLJ3

380

50

80

0.21

2200

3.6

70

280

130FLJ5

220

50

120

0.55

2600

5.5

72

350

130FLJ7

220

50

120

0.55

2600

5.6

72

350

150FLJ3

220

50

180

0.80

2800

6.5

72

400

150FLJ4

220

50

100

0.46

1400

3.5

65

150

150FLJ5

380

50

320

0.80

2800

10.0

76

450

150FLJ6

380

50

180

0.48

1400

6.5

65

400

150FLJ7

220

50

320

1.60

2800

10.0

76

450

150FLJ8

380

50

300

1.60

2800

10.0

76

450

150FLJ17

220

50

240

1.05

2600

9.0

72

420

170FLJ3

220

50

400

1.80

2700

12.0

72

500

170FLJ4

380

50

400

1.10

2700

12.0

72

500

170FLJ7

220

50

500

2.30

2700

15.0

725

530

170FLJ8

380

50

500

1.30

2700

15.0

75

530

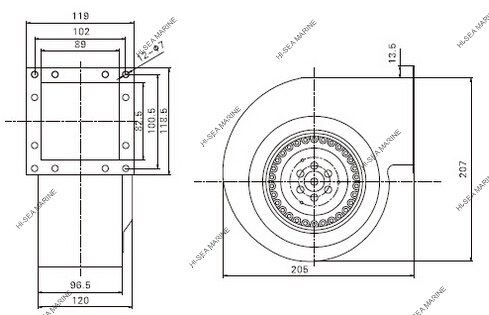

Structure :


FLJ External Rotor Centrifugal Fan

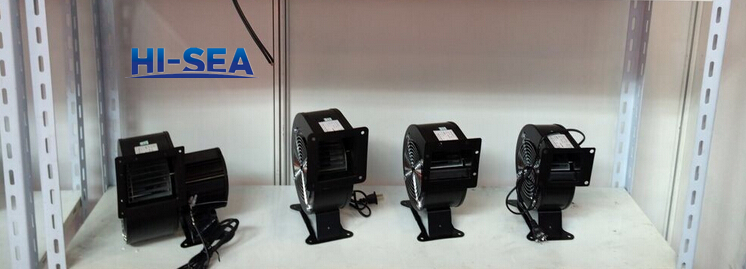

Photo :

FLJ External Rotor Centrifugal Fan

Our Certifications :


FLJ External Rotor Centrifugal Fan
