DF Low-noise Centrifugal Fan

Applications :

Widely used in telecommunications,electricity,electrical,electronics,geology,mining,shiping,paper and other industries and sectors,Especially for plastic machinery,printing machinery,blueprint paper,dryer,blow molding machines and underground facilities and other places of cooling,temperature control and ventilation.

Advantage :

DF Low noise centrifugal blower sophisticated process design,material strong,stable and reliable performance,noise reduction effect is remarkable,it has a low noise,high efficiency,long life ,easy installation and other industries.

Performance Parameter

Type	Power KW	Flow Rate M3/h	Total Pressure Pa	Noise≤DB(A)	Rorate Speed r/min	Voltage V
DF-2	0.18	406	450	72	2840	380
DF-3	0.25	504	860	75	2840	380
DF-4	0.37	660	850	76	2840	380
DF-5	0.55	850	1020	76	2840	380
DF-6	0.75	1200	1210	78	2840	380
DF-7	1.1	1650	1260	80	2840	380
DF-8	1.5	2300	1400	82	2840	380
DF-9	2.2	2800	1650	82	2840	380
DF-10	3	3000	1700	82	2840	380
DF-11	4	3200	1750	85	2840	380
DF-12	5.5	3500	1800	85	2840	380

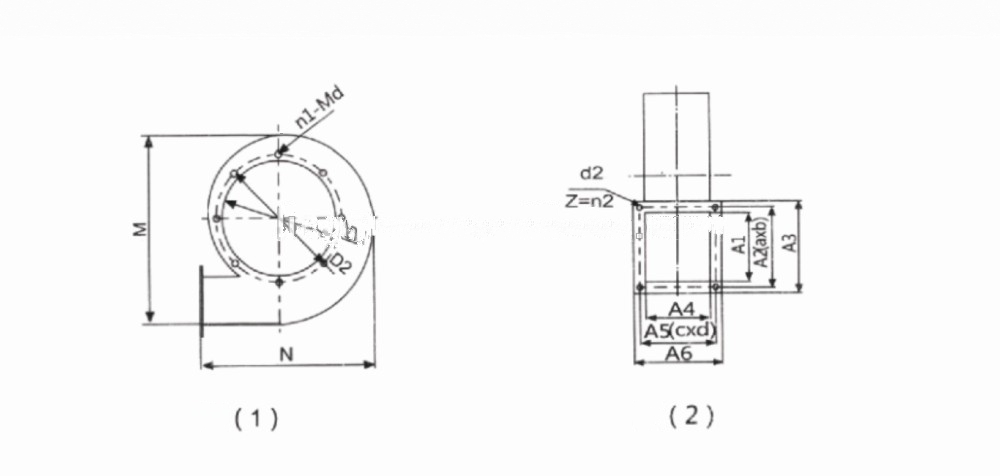

Structure :

DF Low-noise Centrifugal Fan

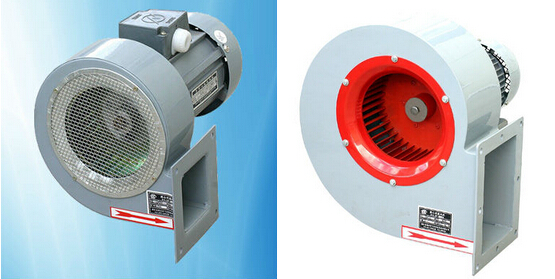

Photo :

DF Low-noise Centrifugal Fan

Our Certifications :

DF Low-noise Centrifugal Fan
