JCL(CLQ) Marine Centrifugal Fan


Introduction :

JCL(CLQ) series marine centrifugal fan is capable of blowing air, such as ocean air containing salt vapor and corrosive air containing oil vapor and a small quantity of acid steam which generated by the natural evaporation of the batteries. So it can be widely used for ventilation of various cabin rooms and the boiler, they are also applicable in other places that suit.

The fan is designed and manufactured according to the standard of GB11865 ¡¶Marine Centrifugal Fan¡·and ¡¶The manufacture Rules of Sea-going Steel Ships¡·which approved by the Register of the People's Republic of China.


Features :


Small in size and light in weight . Low noise and low vibration .

Good anti-corrosiveness. Good air tightness

Small starting torque. Strongly performance of resisting swing, vibration and shocking


Model Explanation :


JCLQ-15

JC - Marine or navy use

L - Centrifugal fan

Q - Forward fan

15 - Impeller's diameter


Performance Parameter :


Model No Folw rate Total pressure Static pressure Speed Motor Weight
m3/h Pa Pa r/min Freq (Hz) Power kw Model kgs
JCL-15 500 550 490 2920 50 0.75 Y-J801-2-H 25
800 540 390
600 780 590 3500 60
960 645 470
JCL-16 800 600 490 2920 50 0.75 Y-J801-2-H 26
1200 590 340
960 860 705 3500 60
1400 840 490
JCL-17 800 695 590 2920 50 0.75 Y-J801-2-H 27
1200 685 440
960 1000 840 3500 60
1400 980 635
JCL-18 1200 810 635 2920 50 0.75 Y-J801-2-H 30
1500 810 540
1400 1165 910 3500 60 1.1 Y-J802-2-H
1800 1165 775
JCL-19 1500 900 735 2920 50 1.1 35
2000 880 590
1800 1295 1060 3500 60 1.5 Y-J90S-2-H
2400 1265 840
JCL-20 800 245 195 1460 50 0.55 Y-J80X1-4-H 30
960 350 285 1750 60
JCL-20 1500 1050 880 2920 50 1.5 Y-J90S-2-H 42
2000 1030 735
1800 1510 1265 3500 60 2.2 Y-J90L-2-H
2400 1480 1060
JCL-21 2000 1175 930 2920 50 1.5 Y-J90S-2-H 42
2500 1165 785
2400 1685 1330 3500 60 2.2 Y-J90L-2-H
3000 1675 1125
Note : This is part of the data sheet ,for more model details please contact sale10@hiseamarine.com !



Struture :

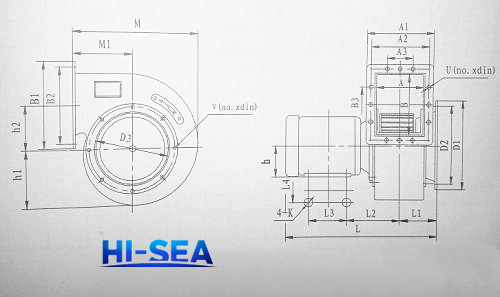

JCL(CLQ) Marine Centrifugal Fan



The fan is designed and manufactured into a horizontal structure type or a vertical type. The impellers are mounted directly on the motor shaft extension. The impellers is made of aluminum alloy and carefully balanced in static and dynamic ways.

Both the casing and the air inlet are made of welded common steel.

The fan can be made for anticlockwise rotation (turn left) or Clockwise rotation (turn right).


Photo :

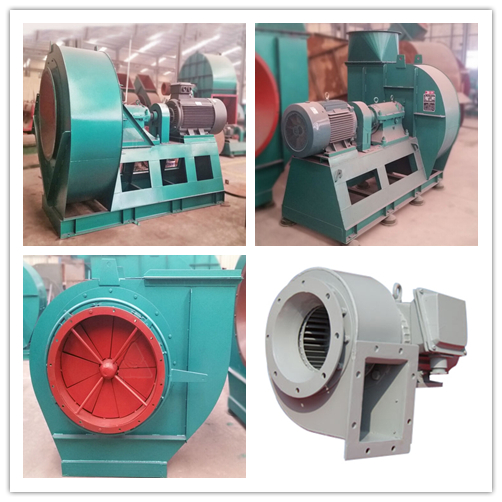

JCL(CLQ) Marine Centrifugal Fan
