DBF Low-noise Centrifugal Cabinet Fan

[Search Related Products]

DBF Low-noise Centrifugal Cabinet Fan

Applications :


DBF series cabinet fan is specially designed to meet the supply air and exhaust air of different working condition running, according to the seasonal variation and operation condition to adjust the air volume, can save energy consumption. It can supply air to multi-direction air duct at the same time. It has the advantages of stable running, low-noise, small volume, light weight, good-looking appearance, convenient maintenance etc. It is widely used in air conditioning project system of supply air and exhaust air, such as: industrial production, civil construction, business entertainment, education and public health departments. According to the request, the cabinet fan can adjust air volume and air pressure by power pressure regulating or by power frequency conversion. It can be remote controlled after equipped with electric control cabinet.

a) DBF-I: external-rotor motor drive and multi-fan structure; supply air to multi-direction air duct at the same time. The vertical type is inlet air horizontally and outlet air vertically upward.

b) DBF-II: forward curved multi-blades centrifugal cabinet fan, with a single-fan and belt drive structure, can provide large air volume.

c) DBF-III: backward curved plate-type centrifugal cabinet fan, with a single-fan and belt drive structure, and can provide high air pressure.


DBF-I, II, III can be assembled with the dust filters in the inlet air according to user's requirements, or addprimary filter, mid-effect filter to be used as a purifying cabinet fan. The dimensions of cabinet can be further designed.


Performance Parameter :


DBF-¢ñ:


Model
Air Capacity(m3/h)
Pressure(Pa)
Motor Power(KW)
Noise dB(A)
Weight (Kg)
DBF20
2000
190
0.25
55
85
DBF30
3000
323
0.55
58
90
DBF2¡Á20
4000
190
2x0.25
58
175
DBF40
4000
373
0.8
60
180
DBF50
5000
441
1.1
62
185
DBF3¡Á20
6000
190
3x0.25
60
180
DBF2¡Á30
6000
323
2x0.55
61
160
DBF60
6000
302
1.1
63
210
DBF70
7000
385
1.5
65
220
DBF2¡Á40
8000
373
2x0.8
63
290
DBF80
8000
407
1.8
65
240
DBF3¡Á30
9000
323
3x0.55
63
300
DBF90
9000
450
2.2
63
280
DBF2¡Á50
10000
441
2x1.1
65
200
DBF100
10000
601
3
65
275
DBF3¡Á40
12000
373
3x0.8
65
380
DBF2¡Á60
12000
302
2x1.1
65
220
DBF120
12000
750
4
65
300
DBF2¡Á70
14000
385
2x1.5
67
240
DBF3¡Á50
15000
441
3x1.1
67
420
DBF2¡Á80
16000
407
2x1.8
67
470
DBF2¡Á90
18000
450
2x2.2
67
470
DBF2¡Á100
20000
601
2x3
67
500
DBF2¡Á120
24000
750
2x4
67
520

for DBF-¢òand DBF-¢ó please contact us for more performance parameter.

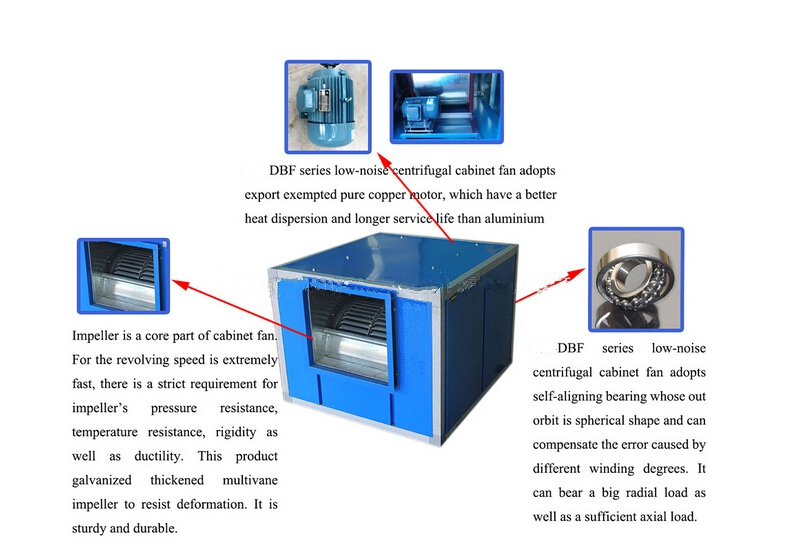

Structure :

DBF Low-noise Centrifugal Cabinet Fan

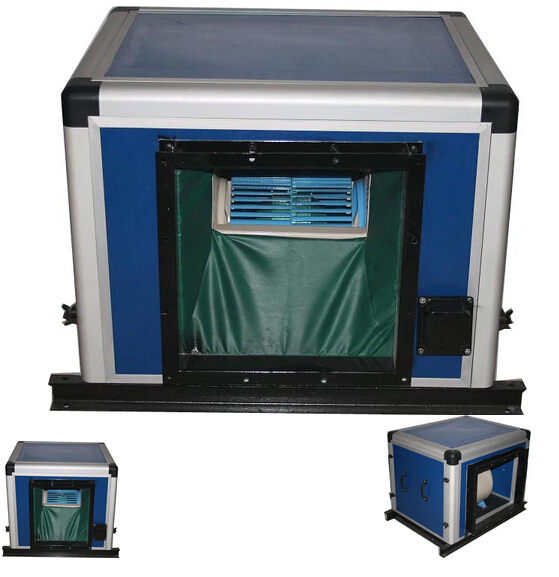

Photo :


DBF Low-noise Centrifugal Cabinet Fan
