Stainless Steel Chain Swivel G401

Stainless Steel Chain Swivel G-401

Stainless steel chain swivel G401 is made by high polished stainless steeel with advanced international production process. The working load limited of it is from 850 pounds to 45200 pounds. And its size is from 1/4 inch to1 1/2 inch. It has the advantages of small volume, light weight and high strength. And Special specification and marks can be made according to customers requirement.

Product details:

1. Item: stainless steel chain swivel G401

2. Material: stainless steel

3. Technology: drop forged

4. Surface: high polished, hot dip galvanized

5. WLL: 850lbs-45200lbs

6. Breaking load: 4 times of working load

7. Usage: lifting, rigging

8. Size: 1/4-1 1/2

9.Special specifications and marks can be made according to customers requirement

Specification

Size

B

C

D

G

T

W.L.L.

in

in

in

in

in

in

lbs

1/4'

0.69

0.75

0.62

0.25

3

850

5/16'

0.81

1

0.72

0.31

3.59

1250

3/8'

0.94

1.25

1

0.38

4.44

2500

1/2'

1.31

1.5

1.25

0.5

5.69

3600

5/8'

1.56

1.75

1.5

0.62

6.89

5200

3/4'

1.75

2

1.75

0.75

7.84

7200

7/8'

2.06

2.25

2

0.87

9.02

10000

1'

2.31

2.5

2.25

1

10.24

12500

1 1/8'

2.33

2.75

2.5

1.13

11.25

16500

1 1/4'

2.66

3.13

2.75

1.25

12.15

18000

1 1/2'

4.4

4

3

1.5

16.38

45200

Stainless Steel Chain Swivel G401

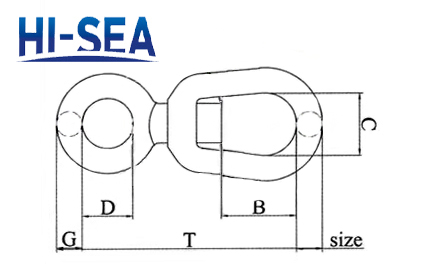

Sketch of the stainless steel chain swivel

Stainless Steel Chain Swivel G401

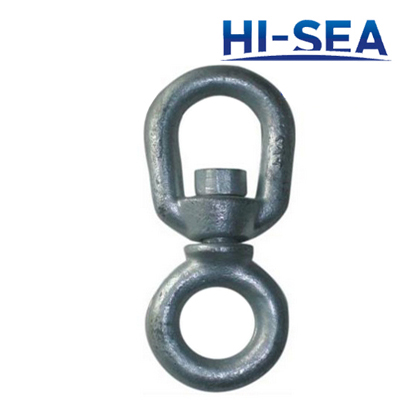

Carbon steel chain swivel G401
