European Type Eye and Jaw Swivel

European Type Eye and Jaw Swivel

European type swivel with eye and jaw is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. The most outstanding advantage of it is the solid and safety structure. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.

Product details:

1. Item: European type swivel eye and jaw

2. Type: European type

3. Material: stainless steel, carbon steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated, high polished

6. WLL:300kg-2500kg

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 6mm-19mm

10.Special specifications and marks can be made according to customers requirement

Specification

Size

A

B

L

WLL

mm

mm

mm

mm

kg

6

6

12

66

300

8

8

16

94

475

10

10

20

118

875

13

13

26

152

1250

16

16

32

188

2125

19

19

38

229

2500

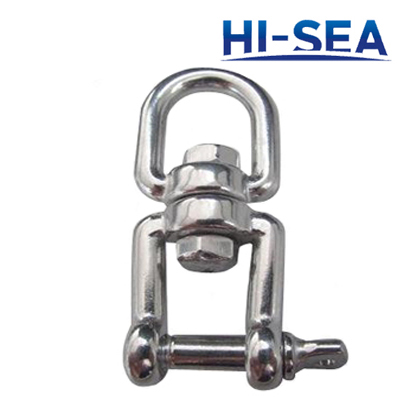

European Type Eye and Jaw Swivel

Sketch of the European type eye and jaw swivel

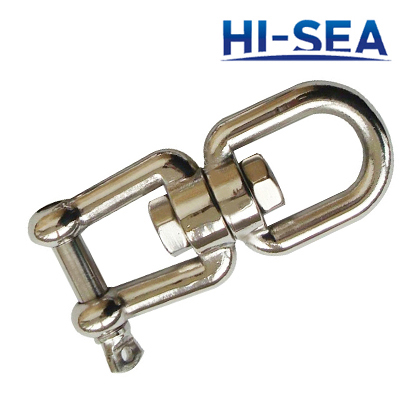

European Type Eye and Jaw Swivel

European type eye and jaw swivel
