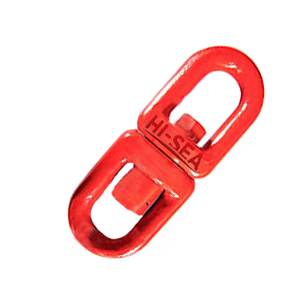

Drop Forged Chain Swivel with Bearing

Drop forged chain swivel with bearing

Drop forged chain swivel with bearing is made by high quality carbon steel with hot dip galvanizing on the surface. The bearing has advantages of providing free rotation around the fixed axis and reducing friction between moving parts. Because of its solid and safety structure, it has bigger bearing capacity than normal swivels. So, if swivel is used in the place with heavier bearing, to be on the safe side, it is recommemded that the the swivel with bearing should be chosen.

Product details:

1. Item: Drop forged chain swivel with bearing

2. Material: carbon steel

3. Technology: drop forged

4. Surface: hot dip galvanized, zinc plated

5. WLL:3.15T-5.3T

6. Breaking load: 4 times of working load

7. Usage: lifting, rigging

8. Size: 10mm-13mm

9. Special specifications and marks can be made according to customers requirement

Specification：

Size	Weight	WLL	A	B	C	D	E	L
mm	kg	ton	mm	mm	mm	mm	mm	mm
10	1.85	3.15	38	76	51	19	34.5	209
13	5.5	5.3	60	116	77	28	60	312

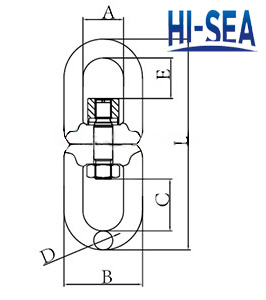

Sketch of the drop forged chain swivel with bearing

Drop forged chain swivel with bearing
