European Type Eye and Eye Swivel

European Type Swivel Eye and Eye

European type swivel with eye and eye is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. All the procedures from raw material purchase to delivery will be strictly examed. The advanced technical design crafts and equipments are completely adopted. The essential working procedures are controlled completely by the computers.

Product details:

1. Item: European type swivel eye and eye

2. Type: European type

3. Material: stainless steel, carbon steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated, high polished

6. WLL:113kg-3250kg

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 5/32-1

10.Special specifications and marks can be made according to customers requirement

Specification

Item

A(mm)

B(mm)

L(mm)

WLL(kg)

HS-01

4

11

50

112.5

HS-02

5

13

59

162.5

HS-03

6

14.7

66

300

HS-04

8

20.5

94

475

HS-05

9

22

102

750

HS-06

10

24

118

875

HS-07

13

32

152

1250

HS-08

16

40

188

2125

HS-09

19

41

229

2500

HS-10

22

47

251

2875

HS-11

25

62

291

3250

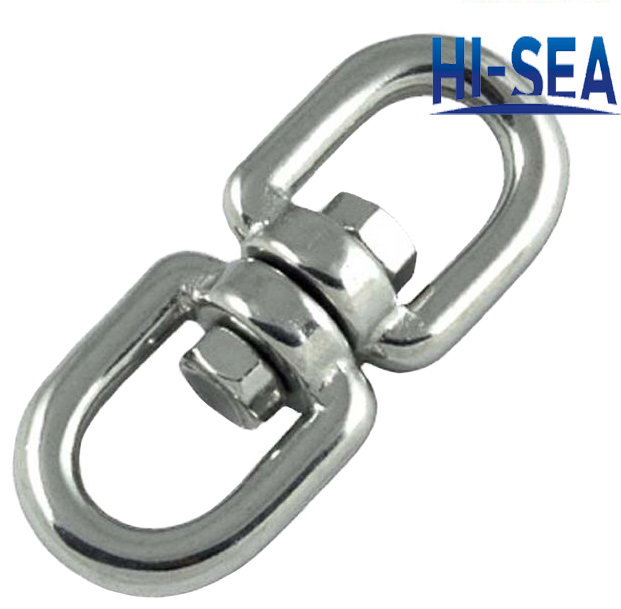

European Type Eye and Eye Swivel

Sketch of the European type eye and eye swivel

European Type Eye and Eye Swivel

European type swivel eye and eye
