G403 Hot Dip Galvanized Jaw End Swivel

G403 Forged Hot Dip Galvanized Jaw End Swivel

G403 forged hot dip galvanized jaw end swivel is made by high polished stainless steel or carbon steel with hot dip galvanizing on the surface. In order to assure the quality of products and to be responsible to the clients, the company strictly carries out the Quality/Environment management system document. All the procedures from raw material purchase to delivery will be strictly examed.

Product details:

1. Item: G403 forged hot dip galvenized jaw end swlvel

2. Type: US type

3. Material: stainless steel, carbon steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated, high polished

6. WLL: 0.39T-20.5T

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 6mm-38mm

10.Special specifications and marks can be made according to customers requirement

Specification

Size

W.L.L.

Weight

A

C

G

K

L

R

U

V

mm

ton

kg

mm

mm

mm

mm

mm

mm

mm

mm

6

0.39

0.1

31.8

19.1

17.5

11.9

26.2

67

42.9

42.9

8

0.57

0.15

41.4

25.4

20.6

12.7

28.7

74.5

52

46

10

1.02

0.3

50.8

31.8

27.69

16

92

63.5

57

13

1.63

0.61

63.5

38.1

33.3

19.1

44.5

114

81

73

16

2.36

1.12

76

44.5

41.4

23.9

52

135

98.5

87.5

19

3.27

1.76

89

51

47.8

28.7

64.5

154

109

102

22

4.54

2.66

102

57

54

34

70.9

178

127

115

25

5.67

4.46

114

63.5

67

44.5

94.5

217

146

151

32

8.16

7.14

145

79.5

79.5

52

109

248

179

162

38

20.5

24.8

178

102

143

73

152

362

254

275

G403 Hot Dip Galvanized Jaw End Swivel

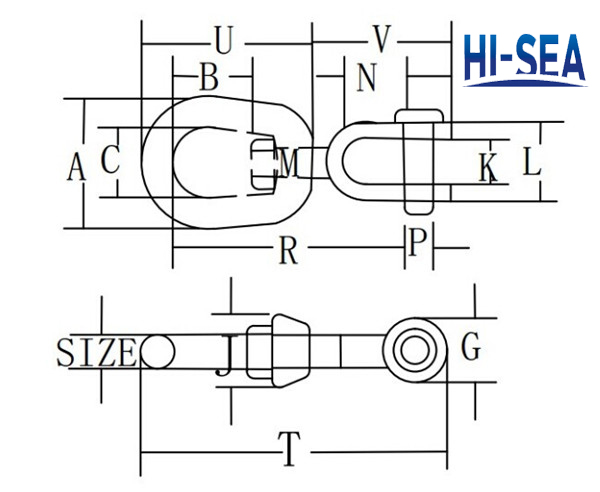

Sketch of the G403 forged hot dip galvanized jaw end swivel

G403 Hot Dip Galvanized Jaw End Swivel

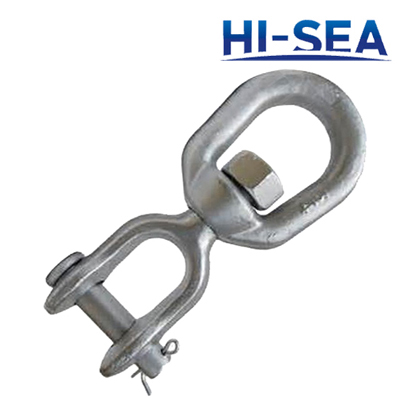

G403 forged hot dip galvanized jaw end swivel

G403 Hot Dip Galvanized Jaw End Swivel

G403 forged hot dip galvanized jaw end swivel
