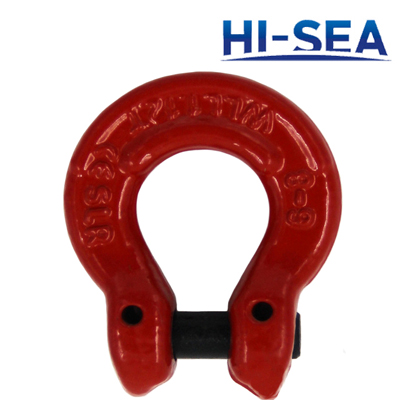

G80 Omega Link

G80 omega link is one kind of most common links, which is widely used in industry. It is made by high quality alloy steel with hot dip galvanizing on the surface. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. And Special specification and marks can be made according to customers requirement.

Product Details:

1. Item: G80 omega link

2. Grade: G80

3. Material: Forged alloy steel

4. Technology: Drop forged

5. Surface: Hot dip galvanized, Color painted

6. WLL: 1.12T-12.5T

7. Braking load is 4 times of working load limited

8. Usage: Lifting accessories

9. Size: 20.5mm-58mm

10. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

B(mm)

ŽÁ(mm)

H(mm)

L(mm)

1.12

0.12

4.48

8

41

20.5

25

52

2

0.22

8

10

52

23.5

35

68.5

3.15

0.36

12.6

12

62

31.5

40.5

81

5.3

0.71

21.2

15

81

41

54

108

8

1.3

32

19

99

49.5

64

126

12.5

2.2

50

23

118

58

75.6

152

G80 Omage Link

Sketch of the G80 omega link
