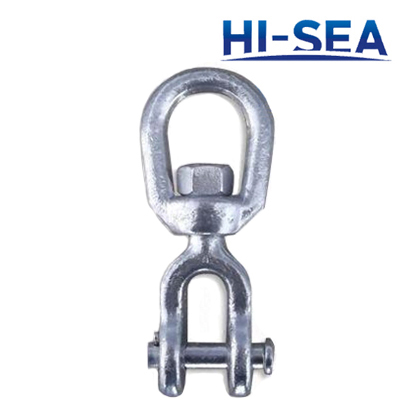

Galvanized Carbon Steel Jaw End Swivel

Hot-dipped Galvanized Carbon Steel Jaw End Swivel

Hot dip galvanized carbon steel jaw end swivel is made by high quality carbon steel with hot dip galvanizing on the surface. The structure of swivel make it can prevent the knot of chain or wire ropes. To meet the increasing demands of clients, we have manufacture a variety of swivels. They can serve in many circumstances. And Special specification and marks can be made according to customers requirement.

Product details:

1. Item: Hot dip galvenized carbon steel jaw end swivel

2. Type: US type

3. Material: carbon steel, stainless steel

4. Technology: drop forged

5. Surface: hot dip galvanized, electro galvanized, zinc plated

6. WLL: 850lbs-42500lbs

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 1/4-1 1/2

10.Special specifications and marks can be made according to customers requirement

Specification

Size

W.L.L.

A

B

C

K

N

P

R

Weight

in

lbs

in

in

in

in

in

in

in

lbs

1/4'

850

1.25

0.69

0.75

0.47

0.875

0.25

2.625

0.25

5/16'

1250

1.625

0.81

1

0.5

0.875

0.31

2.94

0.37

3/8'

2250

2

0.94

1.25

0.625

1.06

0.38

3.625

0.7

1/2'

3600

2.5

1.31

1.5

0.75

1.31

0.5

4.5

1.43

5/8'

5200

3

1.56

1.75

0.94

1.5

0.625

5.31

2.48

3/4'

7200

3.5

1.75

2

1.13

1.75

0.75

6.06

4.14

7/8'

10000

4

2.06

2.25

1.19

2.06

0.875

7

4.87

1'

12500

4.5

2.31

2.5

1.75

2.81

1.13

8.56

10.73

1 1/8'

15200

5

2.36

2.75

1.75

2.81

1.13

8.94

12.48

1 1/4'

18000

5.625

2.69

3.13

2.06

2.81

1.36

9.44

16.28

1 1/2'

45200

7

4.19

4

2.875

4.44

2.25

14.75

49

Galvanized Carbon Steel Jaw End Swivel

Sketch of the hot dip galvanized carbon steel jaw end swivel

Galvanized Carbon Steel Jaw End Swivel

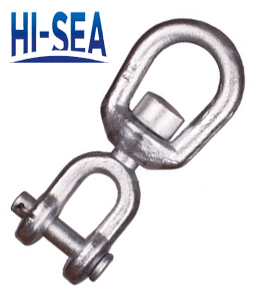

Hot dip galvanized carbon steel jaw end swivel
