G80 Germanic Type Connecting Link

G80 Germanic Type Connecting Link

G80 Germanic type connecting link is a chain accessory that allows convenient connection or disconnection of a chain. Because of its solid structure, it can be widely used in mine, large factory, shipping, metallurgy, bridge constraction and so on. very procedure are controlled strictly to make sure the quality of hooks before delivery. We never allow bad goods flow to the maket and ensure to supply our custumers the high quality and security products.

Product Details:

1. Item: G80 Germanic type connectint link

2. Grade: G80

3. Type: Germanic type

4. Material: Alloy steel

5. Technology: Drop forged

6. Surface: Hot dip galvanized, Color painted

7. WLL: 1.25T-5T

8. Braking load is 4 times of working load limited

9. Usage: Lifting accessories

10. Size: 7mm-14.5mm

11. Special specifications and marks can be made according to customers requirement

Specification:

WLL(T)

Weight(kg)

B.L(T)

A(mm)

L(mm)

K(mm)

ŽÁ(mm)

1.12

0.12

4.48

19.5

62.5

43

9.8

2

0.2

8

20

77

56

10.5

3.15

0.33

12.6

27

101

77

12

5.3

0.66

21.2

35.5

129

95

17

8

1.22

32

41.5

161

119

21

12.5

2.18

50

52

186

137

24.5

15

3.27

60

52

217.5

158.5

29.5

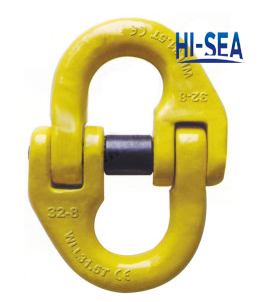

G80 Germanic Type Connecting Link

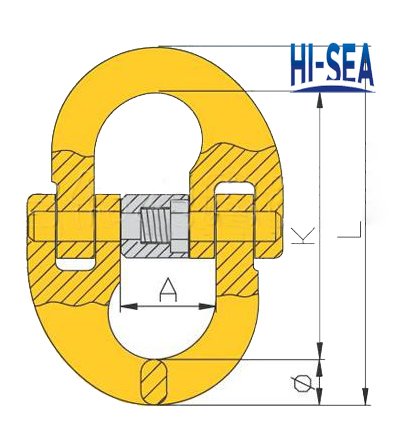

Sketch of the G80 Germanic type connecting link

G80 Germanic Type Connecting Link

G80 Germanic Type Connecting Link
