Series of Marine Sound Signals

Products characteristic:

Sound announciator is an important and simple tool for communication on ships.An alarm can send out signal in time to indicate the occurrence of certain abnormal phenomenon,at the same time,it is also used as marine telephone,communication device,command alarm and other electrical appliances on ships.

Technical parameter:

1.Suitable environmental temperature:-25℃-+55℃.

2.It can reliably work when the power voltage ranges within±15℃for DC current of its rated voltage,and its sound intensity will not lower than the value stipulated.

3.The protection class：56

4.Cable outside diameter ф14-ф16

Specifications:

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC power-fail electric bell	YLK-24Z	24V	0.1A	86dB	1.7kg
		YLK-110Z	110V	0.05A
		YLK-220Z	220V	0.03A
	DC short-connect electric bell	YLB-24Z	24V
		YLB-110Z	110V
		YLB-220Z	220V
	AC electric bell	YL-24J	24V	0.15A	82dB
		YL-110J	110V	0.08A
		YL-220J	220V	0.04A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC alarm bell	YZ-24Z	24V	0.1A	92dB	2.0kg
		YZ-110Z	110V	0.05A
		YZ-220Z	220V	0.03A
	AC alarm bell	YZ-24J	24V	0.15A	82dB	2.0kg
		YZ-110J	110V	0.08A
		YZ-220J	220V	0.04A

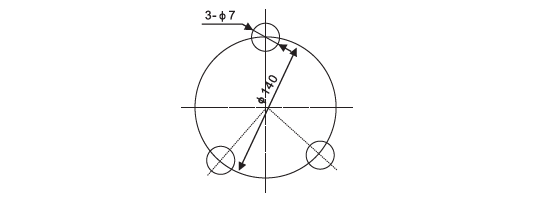

Dimension: Series of Marine Sound Signals

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC electric bell	YL120-24Z	24V	0.3A	85dB	2.0kg
		YL120-110Z	110V	0.1A
		YL120-220Z	220V	0.05A
	AC electric bell	YL120-24J	24V	0.2A
		YL120-110J	110V	0.1A
		YL120-220J	220V	0.05A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC electric bell for signal light	YLX120-24Z	24V	0.8A	85dB	2.1kg
		YLX120-110Z	110V	0.3A
		YLX120-220Z	220V	0.2A
	AC electric bell for signal light	YLX120-24J	24V	0.8A
		YLX120-110J	110V	0.4A
		YLX120-220J	220V	0.3A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC electric bell	YL200-24Z	24V	0.3A	95dB	2.75kg
		YL200-110Z	110V	0.1A
		YL200-220Z	220V	0.05A
	AC electric bell	YL200-24J	24V	0.2A
		YL200-110J	110V	0.1A
		YL200-220J	220V	0.05A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC electric bell for signal light	YLX200-24Z	24V	0.8A	95dB	2.85kg
		YLX200-110Z	110V	0.3A
		YLX200-220Z	220V	0.2A
	AC electric bell for signal light	YLX200-24J	24V	0.8A
		YLX200-110J	110V	0.4A
		YLX200-220J	220V	0.3A

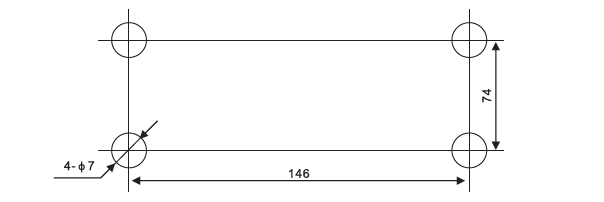

Dimension:

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC electric bell for signal light	YLX-24Z	24V	0.6A	92dB	3.4kg
		YLX-110Z	110V	0.2A
		YLX-220Z	220V	0.1A
	AC electric bell for signal light	YLX-24J	24V	0.5A	82dB	3.3kg
		YLX-110J	110V	0.15A
		YLX-220J	220V	0.1A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC electric bell-sounder	YLM-24Z	24V	0.2A	92dB	3.8kg
		YLM-110Z	110V	0.1A
		YLM-220Z	220V	0.06A
	AC electric bell-sounder	YLM-24J	24V	0.3A	82dB	3.7kg
		YLM-110J	110V	0.1A
		YLM-220J	220V	0.05A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC alarm bell-sounder	YZM-24Z	24V	0.2A	92dB	4.3kg
		YZM-110Z	110V	0.1A
		YZM-220Z	220V	0.06A
	AC alarm bell-sounder	YZM-24J	24V	0.3A	82dB	4.1kg
		YZM-110J	110V	0.1A
		YZM-220J	220V	0.05A

Photos	Name	Type	Voltage	≦current	Sound intensity	Weight
	DC sounder	YM-24Z	24V	0.1A	92dB	1.8kg
		YM-110Z	110V	0.05A
		YM-220Z	220V	0.03A
	AC sounder	YM0-24J	24V	0.15A
		YM-110J	110V	0.08A
		YM-220J	220V	0.04A

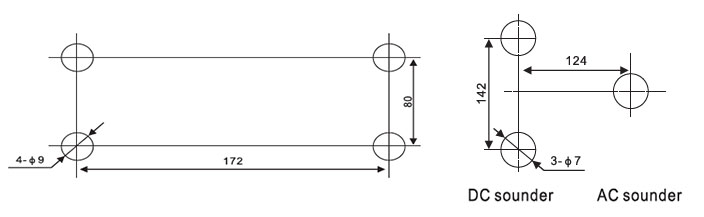

Dimension:
