Marine 16A Brass Plug and Socket,Socket with Switch

Marine 16A Brass Plug and Socket,Socket with Switch

Marine 16A Brass Plug and Socket,Socket with Switch is used for connecting on or off the appliance circuit with AC or DC low-voltage.

Technical Parameter :

Protection class:IP56

Rated current:16A

Rated voltage:250V,440\380V

Pole:2P+E,3p+E

Specifications:

Type and Sketch map	Voltage	Pole	Weight
CTS2-2\214	250V	2P+E	0.8kg
CTS3-2\214	250V	3P+E	0.90kg

Marine 16A Brass Plug and Socket,Socket with Switch

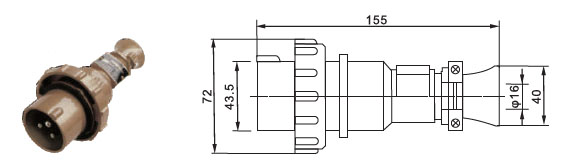

Marine 16A Brass Plug Drawing

Type and Sketch map

Voltage

Pole

Weight

CZS2-2\114

250V

2P+E

2.50kg

CZS2-2\214

250V

2P+E

2.50kg

CZS2-2\714

250V

2P+E

2.65kg

CZS3-2\114

380V\440V

3P+E

2.60kg

CZS3-2\214

380V\440V

3P+E

2.60kg

CZS3-2\714

380V\440V

3P+E

2.75kg

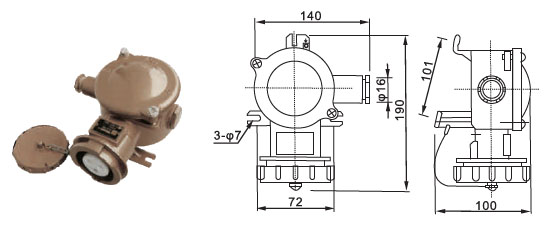

Marine 16A Brass Socket Drawing

Type and Sketch map

Voltage

Pole

Weight

CZKS2-2\1154

250V

2P+E

2.55kg

CZKS2-2\214

250V

2P+E

2.55kg

CZKS2-2\714

250V

2P+E

2.60kg

CZKS3-2\114

380V\440V

3P+E

2.55kg

CZKS3-2\214

380V\440V

3P+E

2.55kg

CZKS3-2\714

380V\440V

3P+E

2.60kg

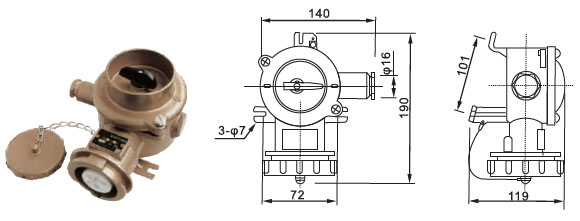

Marine 16A Brass Socket with Switch Drawing
