Marine Button Switch
[Search Related Products]
Marine Button Switch
The Current of Marine Button Switch is 10A.There are three kinds of types.The weight is 0.4kg,0.6kg and 0.8kg.The protection is IP65.
Specifications:
|
Type |
Voltage |
Current |
Protection class |
Weight |
|
ZPB-1 |
220V |
10A |
IP65 |
0.4kg |

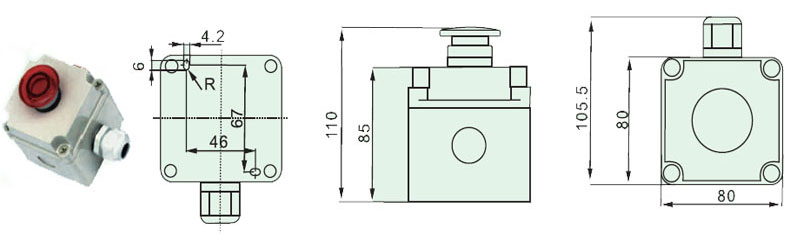

ZPB-1 Drawing of Marine Button Switch
|
Type |
Voltage |
Current |
Protection class |
Weight |
|
ZPB-2 |
220V |
10A |
IP65 |
0.6kg |

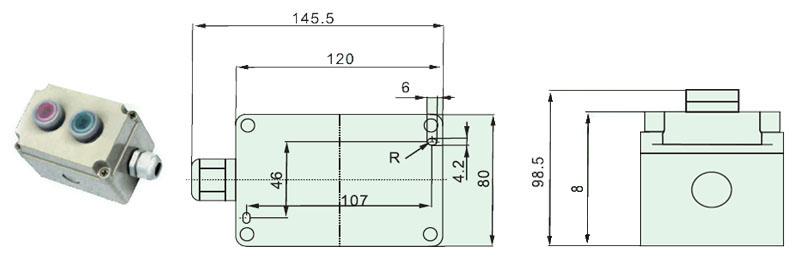

ZPB-2 Drawing of Marine Button Switch
|
Type |
Voltage |
Current |
Protection class |
Weight |
|
ZPB-3 |
220V |
10A |
IP65 |
0.8kg |

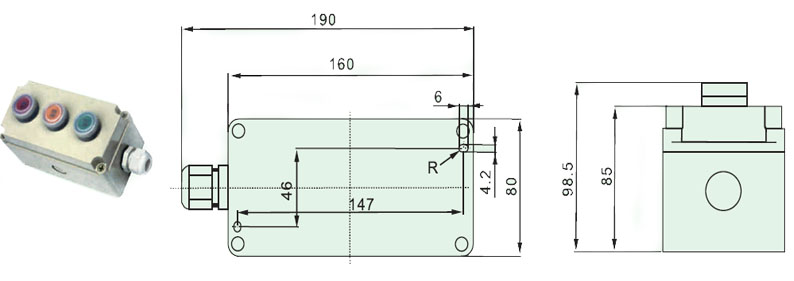

ZPB-3 Drawing of Marine Button Switch

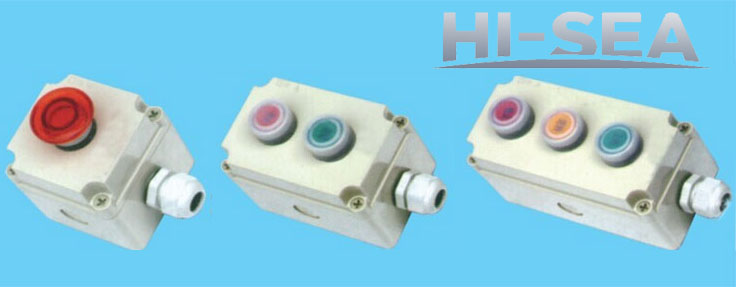

ZPB-1\2\3 Marine Button Switch
