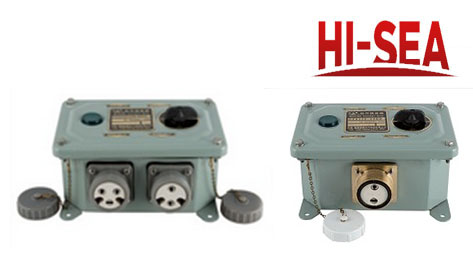

Marine High-low-voltage Socket Box

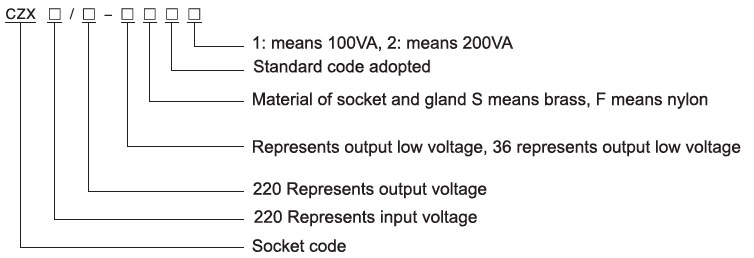

Type and meaning: Marine High-low-voltage Socket Box

Specifications:

Photo	Name	Type	Output voltage	Output current	Weight	Shell
	Marine low-voltage socket box	CZX220\24SD1	24V	4A	6.0kg	Steel Brass Nylon
		CZX220\24SD2	24V	8A	9.5kg
		CZX220\24FC1	24V	4A	5.8kg
		CZX220\24FC2	24V	8A	8.8kg
		CZX220\36SD1	36V	3A	6.0kg
		CZX220\36SD2	36V	8A	9.5kg
		CZX220\36FC1	36V	3A	5.8kg
		CZX220\36FC2	36V	8A	8.8kg

Model 100 and 200 Marine Low-voltage Socket Box

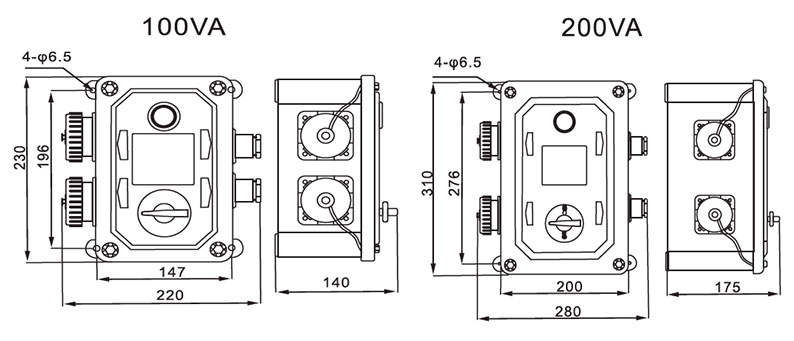

Dmension of Marine Low-voltage Socket Box

Photo	Name	Type	Output voltage	Output current	Weight	Shell
	Marine high-low-voltage socket box	CZX220\220-24SD1	220V\24V	10A\4A	6.5kg	Steel Brass Nylon
		CZX220\220-24SD2	220V\24V	10A\8A	10kg
		CZX220\220-24FC1	220V\24V	10A\4A	6.5kg
		CZX220\220-24FC2	220V\24V	10A\8A	10kg
		CZX220\220-36SD1	220V\36V	10A\3A	6.5kg
		CZX220\220-36SD2	220V\36V	10A\6A	10kg
		CZX220\220-36FC1	220V\36V	10A\3A	6.5kg
		CZX220\220-36FC2	220V\36V	10A\6A	10kg

Model 100 and 200 Marine High-low-voltage Socket Box

Demision of Marine High-low-voltage Socket Box

Marine High-low-voltage Socket Box

Marine High-low-voltage Socket Box\Marine Low-voltage Socket Box
