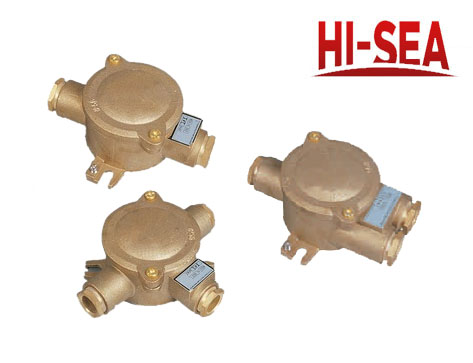

Marine Brass Junction Box
[Search Related Products]
HNA 10A\16A Marine Brass Junction Box
Marine Brass Junction Box is used for connecting marine electrical circuit.The junction box is used as transition.Wire tube connects to the junctionbox. And then wire in the tube is connected in the junction box to protect the wires and connection wires.
Technical Parameter :
Protection class:IP56
Adopted standard:DIN8926350
Cable outside diameter: ¦µ14~¦Õ16
Wiring Sketch Map
Specifications:
| Code | General cable type | Shield cable type | Weight |
|
1151 |
JXH201 | JXH211 | 0.80kg |

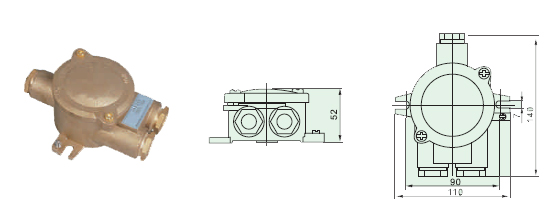

1151 Marine Brass Junction Box Drawing
| Code | General cable type | Shield cable type | Weight |
|
1150 |
JXH202 | JXH212 |
0.80kg |

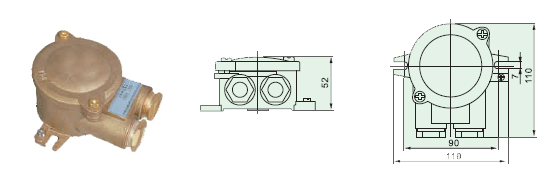

1150 Marine Brass Junction Box Drawing
| Code | General cable type | Shield cable type | Weight |
|
1152 |
JXH301 | JXH311 |
0.90kg |

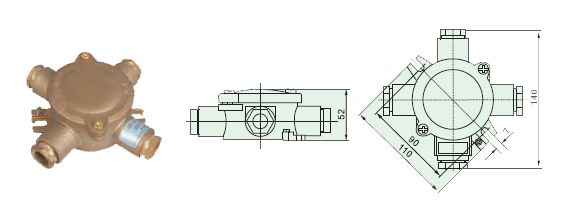

1152 Marine Brass Junction Box Drawing
| Code | General cable type | Shield cable type | Weight |
|
1156 |
JXH302 | JXH312 |
0.90kg |

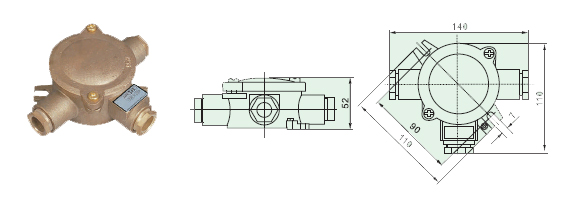

1156 Marine Brass Junction Box Drawing
| Code | General cable type | Shield cable type | Weight |
|
1153 |
JXH401 | JXH411 |
1.00kg |

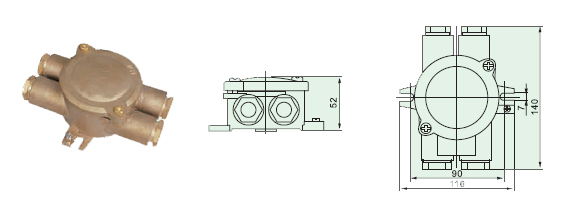

1153 Marine Brass Junction Box Drawing
| Code | General cable type | Shield cable type | Weight |
|
1155 |
JXH402 | JXH412 | 1.00kg |

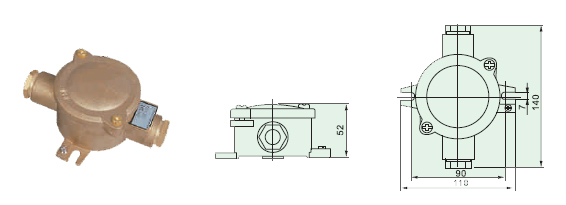

1155 Marine Brass Junction Box Drawing
JXH201 JXH301 JXH302
