IEC Marine Watertight Plug

IEC Marine Watertight Plug


IEC Watertight Plug is designed to meet the IEC standards and color-coding system.The configurations for plug are single-rated which assures proper mating of devices with the same voltage and amperage.So it is impossible to connect a plug of different voltage and \or amperage ratings to avoid causing damage to the equipment or even personal injury.



Technical Parameter :

Protection class:IP56

Adopted standard:DIN89270

Rating voltage:100-130V 200-250V 380-415V 440-460V


Specifications:

Type International code Voltage Current
R12-2B1 792755 100-130V 16A\20A
R12-2B1 792756 200-250V 16A\20A
R12-3B1 792757 200-250V 16A\20A
R12-3B1 792758 380-415V 16A

IEC Marine Watertight Plug

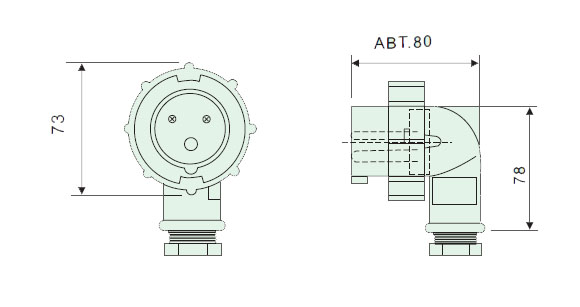

IEC Marine Watertight Plug Drawing of 792755 and 792756

IEC Marine Watertight Plug

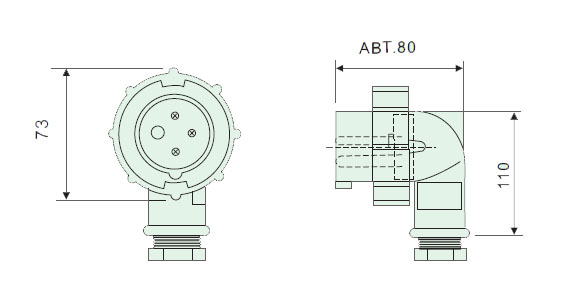

IEC Marine Watertight Plug Drawing of 792757 and 792758


IEC Marine Watertight Plug

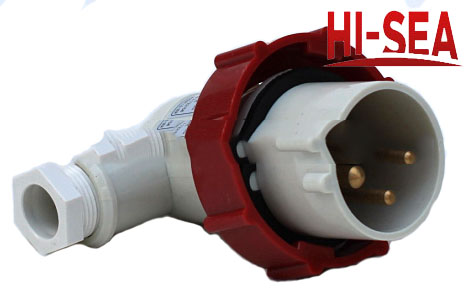

792758 IEC Marine Watertight Plug
