Marine Nylon Switch
Marine Nylon Switch is used for connecting cutting on or off the appliance circuit with AC or CD low-voltage.The protection class is IP56.The adopted standard is DIN89270.There are five types as follows:
Technical Parameter :
Protection class:IP56
Adopted standard:DIN89270
Cable outside diameter: ¦µ14~¦Õ16
Wiring Sketch Map
Specifications:
|
Code |
Type |
Rating voltage |
Weight |
|
1133\FS |
HS101-1\2\3\4\5 |
24V\125V\250V\(380V\440V)\(380V\440V) |
0.22kg |

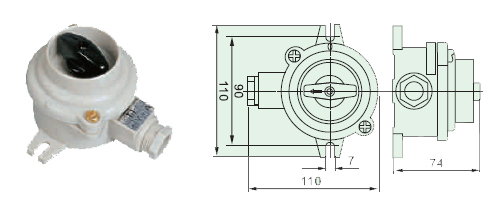

1133\FS Marine Nylon Switch Drawing
|
Code |
Type |
Rating voltage |
Weight |
|
1133\D\FS |
HS201-1\2\3\4\5 |
24V\125V\250V\(380V\440V)\(380V\440V) |
0.23kg |
1133\D\FS Marine Nylon Switch Drawing
|
Code |
Type |
Rating voltage |
Weight |
|
1133\2\FS |
HS202-1\2\3\4\5 |
24V\125V\250V\(380V\440V)\(380V\440V) |
0.23kg |
1133\2\FS Marine Nylon Switch Drawing
|
Code |
Type |
Rating voltage |
Weight |
|
1133\3\FS |
HS302-1\2\3\4\5 |
24V\125V\250V\(380V\440V)\(380V\440V) |
0.24kg |
1133\3\FS Marine Nylon Switch Drawing
|
Code |
Type |
Rating voltage |
Weight |
|
1133\2D\FS |
HS402-1\2\3\4\5 |
24V\125V\250V\(380V\440V)\(380V\440V) |
0.25kg |

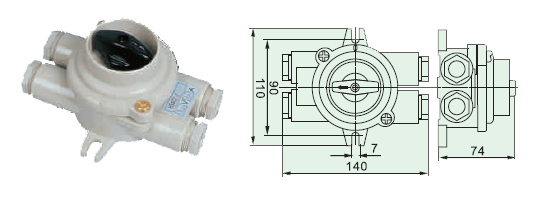

1133\2D\FS Marine Nylon Switch Drawing
1133\2D\FS 1133\D\FS 1133\FS
