Marine Brass Switch

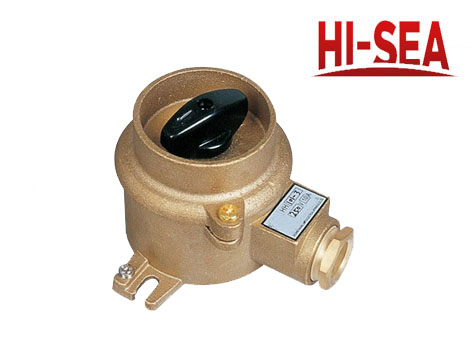

HNA 10A\16A Marine Brass Switch
Marine Brass Switch is used for connecting cutting on or off the appliance circuit with AC or CD low-voltage. The single pole of plug pulled out should be notless than 4N.The temperature rise of conductive part shouldn't exceed 40K.The protection class is IP56.The metal shell should have reliable earthing device.The screw of cover plate is M6 locking screw.

Technical Parameter :

Protection class:IP56

Adopted standard:DIN89270

Cable outside diameter: Φ14~φ16

Wiring Sketch Map

Specifications:

Code	General cable type	Shield cable type	Rating voltage		Weight
1133	HH101-1\2\3\4\5	HH111-1\2\3\4\5	24A\125A\250A\(380A\440A)\(380A\440A)		0.80kg

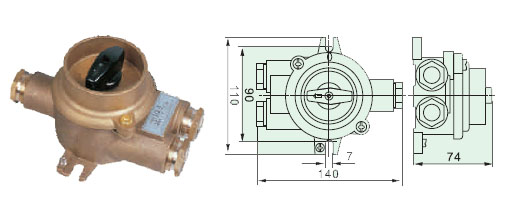

1133 Marine Brass Switch Drawing

Code	General cable type	Shield cable type	Rating voltage	Weight
1133\D	HH201-1\2\3\4\5	HH211-1\2\3\\5	24A\125A\250A\(380A\440A)\(380A\440A)	1.00kg

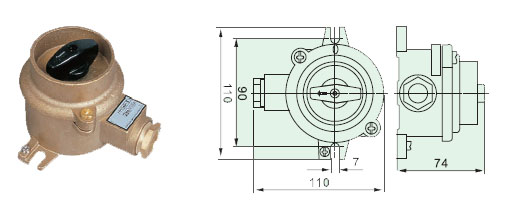

1133\D Marine Brass Switch Drawing

Code	General cable type	Shield cable type	Rating voltage	Weight
1133\2	HH202-1\2\3\4\5	HH212-1\2\3\4\5	24A\125A\250A\(380A\440A)\(380A\440A)	1.00kg

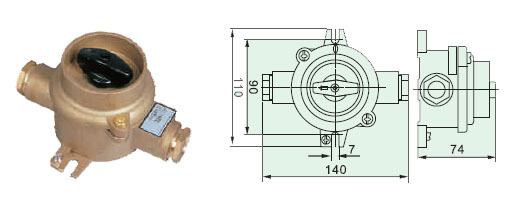

1133\2 Marine Brass Switch Drawing

Code	General cable type	Shield cable type	Rating voltage	Weight
1133\3	HH302-1\2\3\4\5	HH312-1\2\3\4\5	24A\125A\250A\(380A\440A)\(380A\440A)	1.10kg

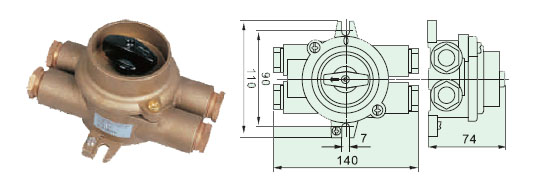

1133\3 Marine Brass Switch Drawing

Code	General cable type	Shield cable type	Rating voltage	Weight
1133\2D	HH402-1\2\3\4\5	HH212-1\2\3\4\5	24A\125A\250A\(380A\440A)\(380A\440A)	1.10kg

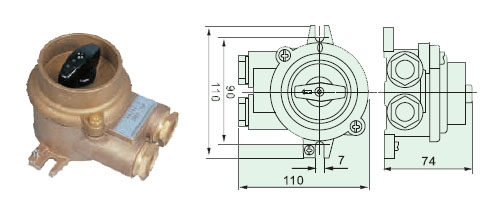

1133\2D Marine Brass Switch Drawing

1133 Marine Brass Switch
