Marine Bulwark Mounted Chock

Marine Bulwark Mounted Chock

Mooring chocks are used to guide the ropes for marine ships. It has multiple forms such as closed chock, open chock, no-roller chock, roller chock etc. According to the different welded positions, mooring chocks can be divided into two categories: bulwark mounted chock and deck mounted chock. Bulwark mounted chocks include JIS F-2007 type A, JIS F-2007 type B, JIS F-2017 type BC, JIS F-2030 type A, DIN81915 type A etc. Deck mounted chocks include JIS F-2005, JIS F-2017 type AC, DIN81915 type C, EU type, CB 34-76 mooring chocks etc. We can provide not only the nominal size chocks but also produce the specific types of chocks as you required. If you’re interested in our mooring chocks, please feel free to contact us.

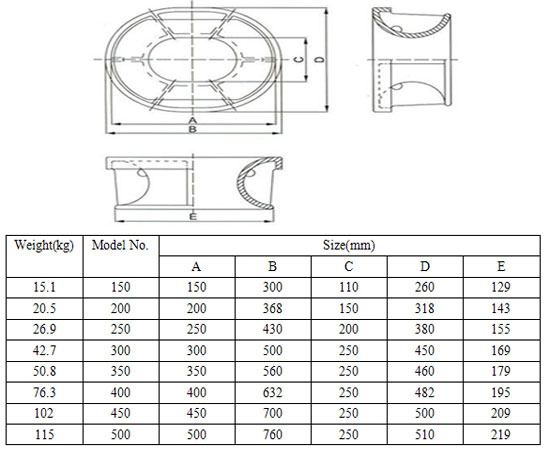

JIS F-2007 Type A Bulwark Mounted:

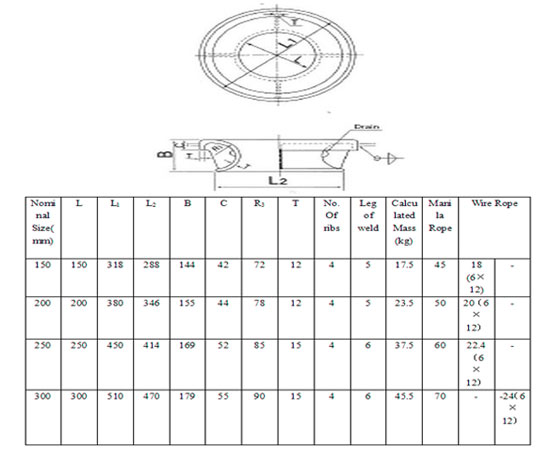

JIS F-2007 Type B Bulwark Mounted:
