JIS F 2007-1976 mooring chock is bulwark mounted chock which used to guide the mooring rope. It is casted steel.Its oval shape makes the surface more smooth and can reduce the friction of the mooring rope. The nominal size of JISF2007 mooring chock ranges from 150mm~500mm. We can also produce the customized chocks as you required. If you’re interesed in our chocks, please feel free to contact us.

Specification :

Model Type: JIS F 2007-1976 Mooring Chock ( A)

Material: Cast Steel

Nominal Size: 150mm~500mm

Weight: 15.1kg~115kg

Welded Position: Bulwark

Standard: JIS F 2007-1976

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

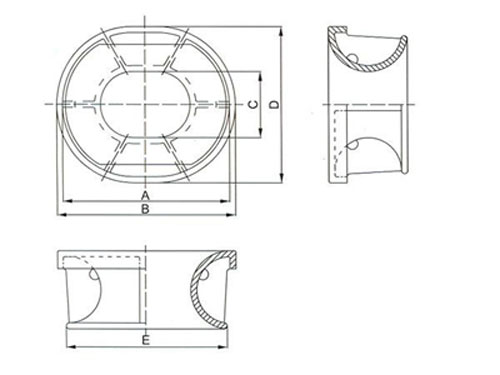

Drawing of JIS F 2007-1976 Mooring Chock ( A):

JIS F 2007-1976 Mooring Chock ( A)

Weight(kg)	Model No.	Size(mm)
Weight(kg)	Model No.	A	B	C	D	E
15.1	150	150	300	110	260	129
20.5	200	200	368	150	318	143
26.9	250	250	430	200	380	155
42.7	300	300	500	250	450	169
50.8	350	350	560	250	460	179
76.3	400	400	632	250	482	195
102	450	450	700	250	500	209
115	500	500	760	250	510	219
