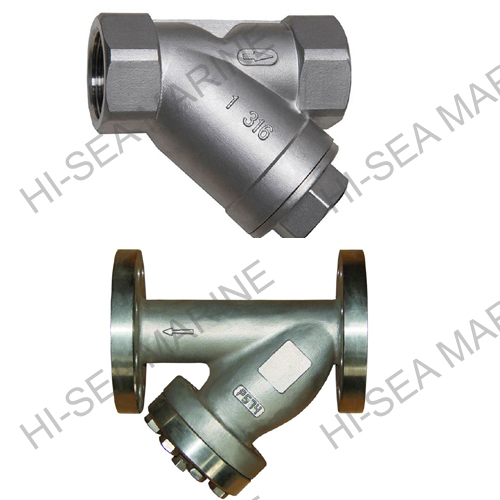

Y type Filter[Search Related Products]
|
NO |
1 |
2 |
3 |
4 |
5 |
|
Component |
Body |
Screen Mesh |
Drainage nozzle |
Gasket |
Bolt/Nut |
|
Material |
CS SS H62 CS³ÄPTFE |
304 316L PTFE |
CS 304 316L PTFE |
PTFE |
304 316L |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

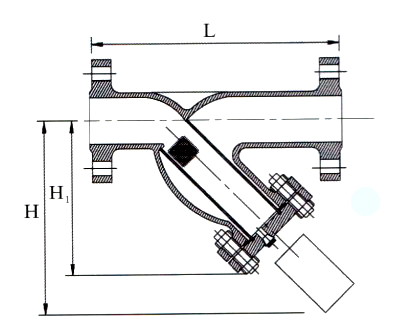

Dimension table£º
|
DN |
B |
C |
D |
E |
|
|
15 |
1/2 |
125 |
70 |
150 |
/ |
|
20 |
3/4 |
145 |
70 |
150 |
/ |
|
25 |
1 |
160 |
80 |
160 |
/ |
|
32 |
11/4 |
180 |
90 |
180 |
/ |
|
40 |
11/2 |
200 |
100 |
240 |
/ |
|
50 |
2 |
220 |
130 |
250 |
/ |
|
65 |
21/2 |
260 |
165 |
350 |
/ |
|
80 |
3 |
280 |
195 |
390 |
20 |
|
100 |
4 |
320 |
230 |
450 |
20 |
|
125 |
5 |
350 |
300 |
520 |
20 |
|
150 |
6 |
380 |
335 |
580 |
20 |
|
200 |
8 |
495 |
420 |
690 |
20 |
|
250 |
10 |
595 |
500 |
800 |
20 |
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium andpore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
