NO |
1 |
2 |
3 |
4 |
5 |
|
Component |
Body |
Screen Mesh |
Drainage nozzle |
Gasket |
Bolt/Nut |
|
Material |
CS SS H62 CS PTFE |
304 316L PTFE |
CS 304 316L PTFE |
PTFE |
304 316L |
1.Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
2.Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

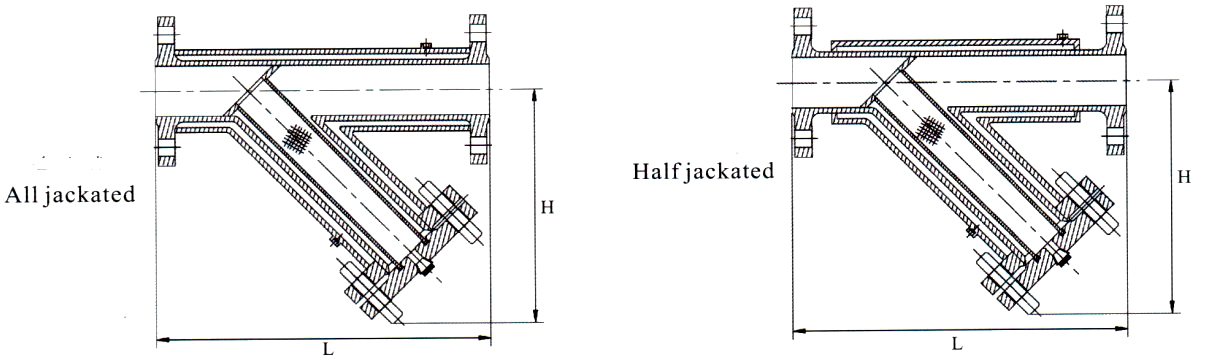

Dimension table£º
|
DN |
L |
H |
|
|
All Jacket |
Half Jacket |
||
|
25/50 |
220 |
250 |
100 |
|
32/65 |
250 |
300 |
150 |
|
40/65 |
250 |
300 |
150 |
|
50/80 |
290 |
320 |
175 |
|
65/100 |
390 |
420 |
370 |
|
80/125 |
430 |
500 |
350 |
|
100/150 |
500 |
600 |
420 |
|
125/200 |
550 |
650 |
420 |
|
150/200 |
550 |
650 |
420 |
|
200/250 |
600 |
700 |
460 |
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium andpore size.
2. Please give clear indication of flange£¬material and operating if you need other standard.
