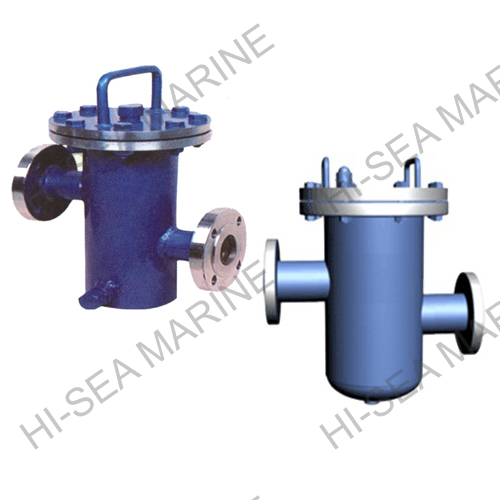

Component |
Body |
Screen Mesh |
Drainage nozzle |
Gasket |
Bolt/Nut |
|
Material |
CS SS H62 CS PTFE |
304 316L PTFE |
CS 304 316L PTFE |
PTFE |
304 316L |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect
Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

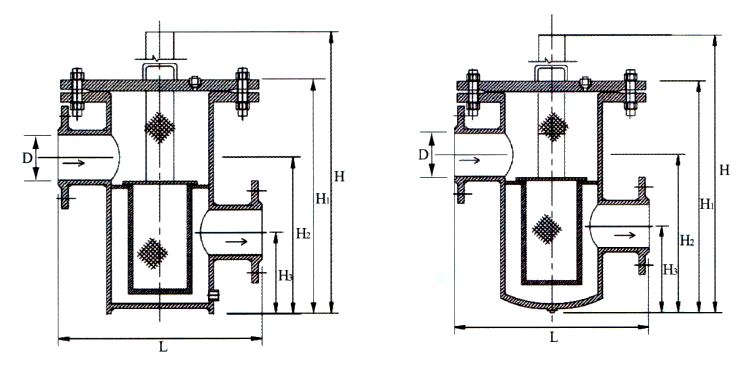

Dimension table£º
|
DN |
D1 |
L |
H |
H1 |
H2 |
H3 |
|
|
25 |
1 |
76 |
180 |
410 |
280 |
180 |
110 |
|
40 |
11/2 |
108 |
260 |
560 |
340 |
220 |
120 |
|
50 |
2 |
108 |
260 |
560 |
340 |
220 |
120 |
|
80 |
3 |
159 |
340 |
719 |
460 |
320 |
180 |
|
100 |
4 |
219 |
400 |
881 |
550 |
390 |
220 |
|
125 |
5 |
273 |
480 |
1079 |
630 |
450 |
260 |
|
150 |
6 |
325 |
500 |
1276 |
720 |
530 |
310 |
|
200 |
8 |
377 |
560 |
1397 |
900 |
670 |
390 |
|
250 |
10 |
426 |
660 |
1544 |
1070 |
800 |
480 |
|
300 |
12 |
478 |
750 |
1739 |
1360 |
1040 |
640 |
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium andpore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
