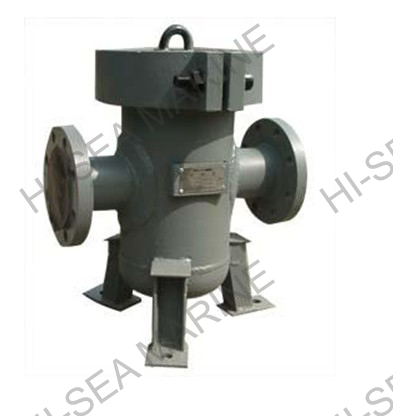

Air-removed filter series is the attached device of the flow meter,which can remover the air and solid impurity so as to ensure the flow metre accuracy and operation life.
Materials of construction£º
|
NO |
1 |
2 |
3 |
4 |
5 |
|
Component |
Body |
Screen Mesh |
Drainage nozzle |
Gasket |
Bolt/Nut |
|
Material |
CS SS H62 CS³ÄPTFE |
304 316L PTFE |
CS 304 316L PTFE |
PTFE |
304 316L |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

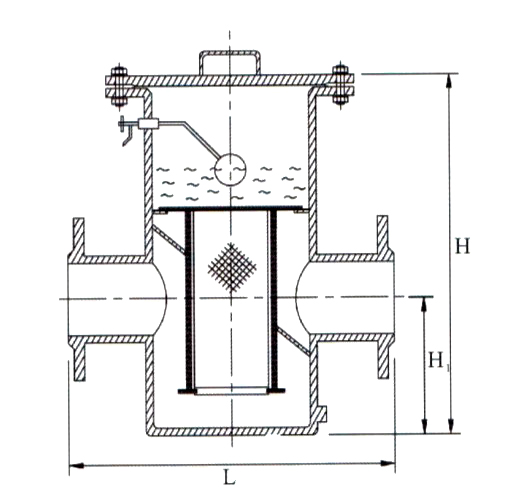

Dimension table£º
|
DN |
L |
H |
H1 |
|
40 |
300 |
400 |
170 |
|
50 |
300 |
440 |
170 |
|
80 |
400 |
590 |
180 |
|
100 |
500 |
630 |
280 |
|
150 |
700 |
870 |
280 |
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium andpore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
