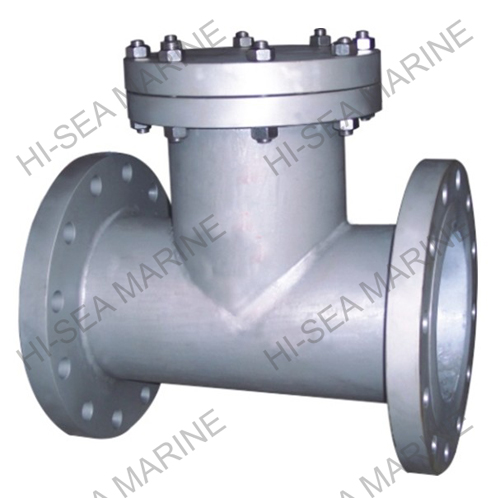

T type Filter[Search Related Products]
|
NO |
1 |
2 |
3 |
4 |
5 |
|
Component |
Body |
Screen Mesh |
Drainage nozzle |
Gasket |
Bolt/Nut |
|
Material |
CS SS H62 CS PTFE |
304 316L PTFE |
CS 304 316L PTFE |
PTFE |
304 316L |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

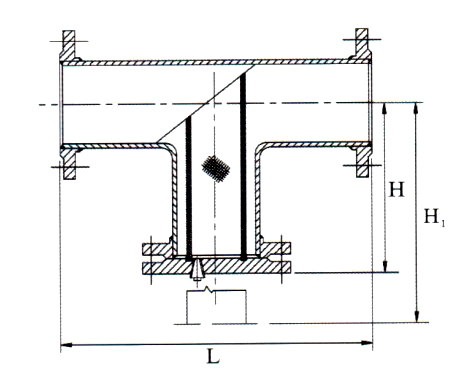

Dimension table£º
|
DN |
L |
H |
H1 |
|
|
50 |
2 |
278 |
166 |
306 |
|
65 |
21/2 |
314 |
187 |
348 |
|
80 |
3 |
342 |
205 |
384 |
|
100 |
4 |
418 |
246 |
473 |
|
125 |
5 |
460 |
270 |
529 |
|
150 |
6 |
500 |
292 |
581 |
|
200 |
8 |
588 |
340 |
694 |
|
250 |
10 |
690 |
398 |
821 |
|
300 |
12 |
792 |
452 |
949 |
|
350 |
14 |
852 |
485 |
1023 |
|
400 |
16 |
970 |
547 |
1166 |
|
500 |
20 |
1148 |
642 |
1372 |
Order Construction£º
