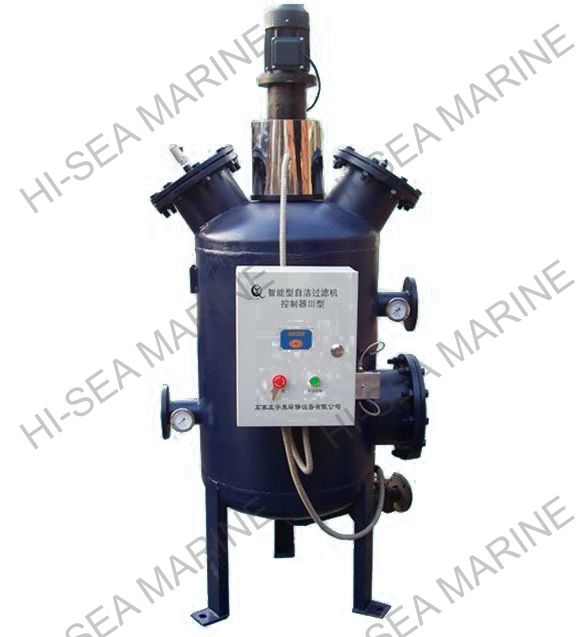

Impurities clogging the inside of the fixed-plsition element are removed by a brush scraper.These impurities are collected in a sludge pot and discharged through drain.
Scraping-Off System
The differential sensor operates the operation of the automatic cleaning when it has been it has been activated by clogging and periodically by the settings on the timer.
Materials of construction£º
|
NO |
1 |
2 |
3 |
4 |
5 |
|
Component |
Body |
Screen Mesh |
Drainage valve |
Control box |
Electromagnetic valve |
|
Material |
CS 304 316L |
CS 304 316L |
CS 304 316L |
CS |
CS 304 316L |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

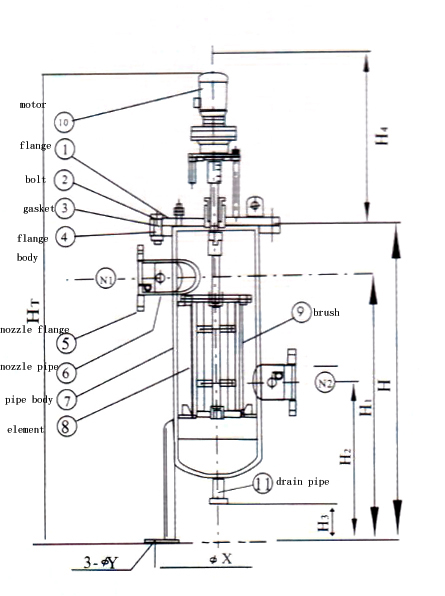

Dimension table£º
¡¡¡¡¡¡¡¡¡¡¡¡DN |
L |
H1 |
H2 |
H3 |
H4 |
HT |
H |
|
|
50 |
2 |
350 |
600 |
380 |
100 |
460 |
1250 |
720 |
|
100 |
4 |
480 |
840 |
500 |
100 |
660 |
1530 |
1000 |
|
150 |
6 |
560 |
1120 |
660 |
120 |
870 |
1910 |
1320 |
|
200 |
8 |
640 |
1240 |
700 |
120 |
1000 |
2090 |
1480 |
|
250 |
10 |
700 |
1460 |
820 |
140 |
1250 |
2350 |
1700 |
|
300 |
12 |
920 |
1920 |
1040 |
140 |
1550 |
2980 |
2240 |
|
400 |
16 |
1120 |
2360 |
1260 |
160 |
1910 |
3530 |
2760 |
|
500 |
20 |
1400 |
2790 |
1440 |
200 |
2300 |
4150 |
3290 |
|
600 |
24 |
1600 |
3140 |
3140 |
220 |
2600 |
4550 |
3690 |
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium andpore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
