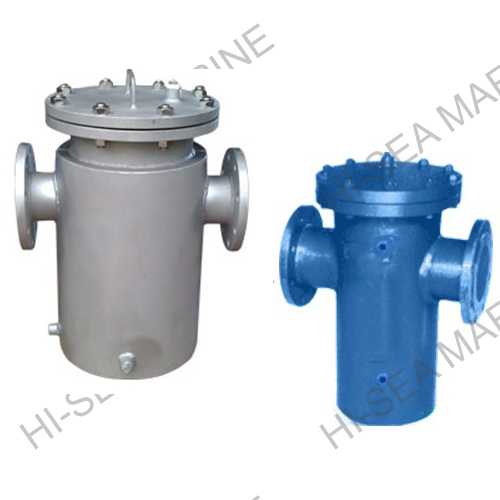

Component |
Body |
Screen Mesh |
Drainage nozzle |
Gasket |
Bolt/Nut |
|
Material |
CS SS H62 CS³ÄPTFE |
304 316L PTFE |
CS 304 316L PTFE |
PTFE |
304 316L |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º0.6MPa¡ª¡ª5.0MPa £¨150Lb¡ª¡ª600Lb£©

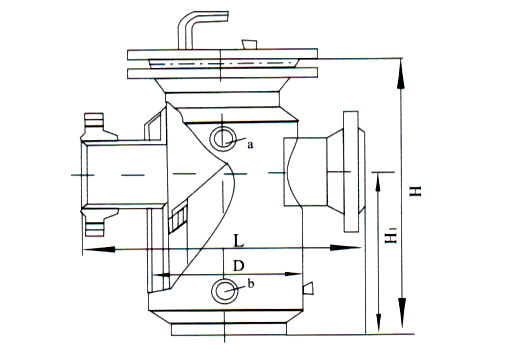

Dimension table£º
|
DN |
L |
H |
H1 |
D |
ab |
|
25 |
285 |
300 |
150 |
133 |
20 |
|
32 |
330 |
320 |
170 |
159 |
20 |
|
40 |
390 |
350 |
190 |
180 |
20 |
|
50 |
440 |
380 |
210 |
219 |
20 |
|
65 |
450 |
420 |
230 |
219 |
20 |
|
80 |
480 |
450 |
280 |
250 |
20 |
|
100 |
540 |
650 |
340 |
325 |
20 |
Order Construction£º
1.Please give indication of dimension£¬operating pressure¡£Filter element type£¬filter medium andpore size.
2.Please give clear indication of flange£¬material and operating if you need other standard.
