Solar Navigation Light

Solar Navigation Light

This solar-powered navigation light is composed of 120mm polyacrylate Fresnel lens, accumulator cell and a lamp holder, microcomputer controller, high efficiency LED lamp, physical silicon solar battery and full-sealed non-maintenance battery. It has the features of exquisite material, advanced circuit and reasonable structure. It can produce a very strong flash in three seconds.

This solar navigation light is particularly used as marker lamp for high-rise buildings, power towers, TV towers, tall chimney, bridge towers, exploration wells, ship navigation and airport runway and other places where is not easy to maintain and required explosion-proof.

Product Specifications

Light Index
Light Source	60 pieces of Super Bright LED Lamp Beads
Light Source Color	Red, Green, White, Yellow, Blue
Light Intensity	1200cd
Horizontal Angle	360°
Vertical Angle	15°
Flashing Rate	298 including regular lighting (user-adjustable)
LED Lifespan	＞100,000hours
Power Index
Rated Voltage	DC 12V
Rated Power	6W
Solar Index
Solar Panel Type	Poly-silicon
Solar Power Output	5W*2
Operating System	Microprocessor Control
Power Supply Index
Battery Type	High Quality Maintenance Free Battery
Battery Capacity	24Ah
Rated Voltage	DC 12V
Continuous Overcast and Rainy Days	Flashlight: ＞40days (14h every day 12.5% cycle period) Regular Lighting: ＞10days
Lamp Body Technology Index
Pedestal Material	Stainless Steel
Lampshade Material	UV Resistant Polycarbonate
Lampshade Diameter	120mm
Installation Size	Small Holes of 4*12mm distributed The Pitch Diameter 80mm
Lamp External Size	520m225mm450mm
Lamp Weight	9.5kg
Environment Technology Index
Humidity	0-100%
Protection Degree	IP65
Wind Load	160km/h
Ambient Temperature	-40°- 70°
Application	High-rise Buildings, Power Towers, TV Transmitting Tower, Tall Chimney, Bridge Towers, Exploration Wells, Ship Navigation and Airport Runways
Certificate	CCS, CE

Solar Navigation Light

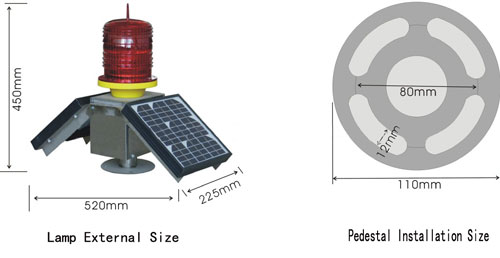

Solar Navigation Light Dimension
