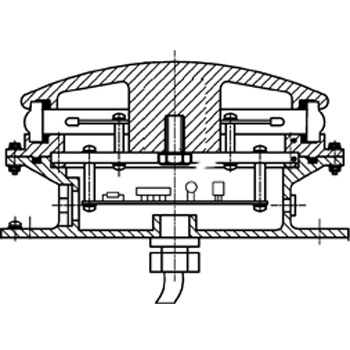

Explosionproof Navigation Mark Light

Explosionproof Navigation Mark Light

Explosion-proof navigation mark light is our newly designed and developed navigation light device. It has explosion-proof certificate provided by the national official inspection agency and the inspection certificate of China Classification Society.

To meet customer’s various needs, our company also supplies other types of explosion-proof lamps such as solar integrated explosion-proof navigation mark light.

Application

HS-SL200A explosionproof navigation mark light is used for all kinds of oil platforms, chemical terminals, dangerous goods terminals and warehouse yard and other occasions with explosion-proof requirements.

Customized Service

We can supply both standard products and customized products according to your special requirements to meet your different needs.

Technical Parameters

Model	HS-SL200A Explosion-proof Navigation Mark Light
Working Voltage	12V
Effective Visual Distance	4.5~7nm (T=0.74，when t≥0.5s)
Daylight Switch	300Lux+50Lux
Character	IALA256
Optical/Electrical Exchange Power	＞15cd/W
Divergence Angle	8°(in accordance with IALA standard)
Level Distribution Uniformity	＞85%
Color Coordinate	IALA Color Zone
Shell	Maine Grade Aluminum Alloy
Working Temperature	-30℃~+70℃
Relative Humidity	100% (condensation)
Protection Grade	IP68
Explosion-proof Grade	Explosion-proof type
Installation Dimension	4 of 12mm screw holes are evenly distributed on the 200mm pitch circle
Certificate	Explosion-proof Certificate, CCS Certificate
