Marine Wooden Pilot Ladder

Marine Wooden Pilot Ladder

This marine pilot ladder is made of wood and designed for pilots embarking and disembarking. It meets the requirements of SOLAS 1974 and it is manufactured according to ISO799-2004 Regulation and MSC.1/Cire.1331-1375/MSC 87 Standards. With a strong structure, it is durable and safe. Approved by the CB/T3142-94 standard, this pilot ladder is also meets the requirements of these certificates CCS, ABS, BV, DNV, LR, KR, NK, etc.

Drawing and specifications:

Marine Wooden Pilot Ladder

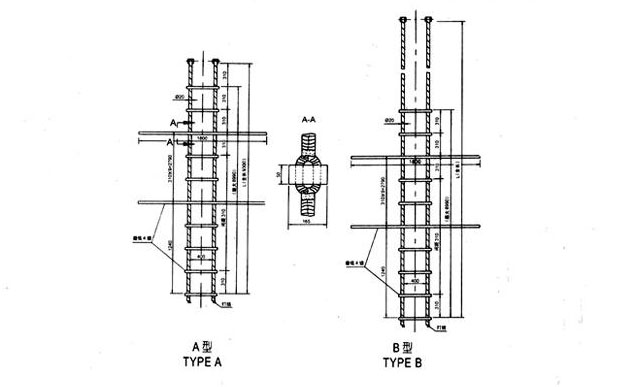

Drawing of Marine Wooden Pilot Ladder

No of Step

No of Twist prevention board

Position of twist prevention board

L(mm)

L1(mm)

Weight(kg)

6

1

the 5th board

1860

1550

22

7

2170

1860

25

8

2480

2170

28

9

2790

2480

31

10

3100

2790

34

11

3410

3100

37

12

3720

3410

40

13

4030

3720

43

14

2

the 5th and 12th boards

4340

4030

52

15

the 5th and 13th boards

4650

4340

55

16

the 5the and 14th boards

4960

4650

58

17

5270

4960

61

18

5580

5270

64

19

5890

2280

67

20

6200

5890

70

21

6510

6200

73

22

6820

6510

76

23

3

the 5th,14th and 21st boards

7130

6820

86

24

the 5th,14th and 22nd boards

7440

7130

89

25

the 5th,14th and 23rd boards

7750

7440

92

26

8060

7750

95

27

8670

8060

98

28

8680

8370

101

29

8990

8680

104

30

9300

8990

107

Product displaying:

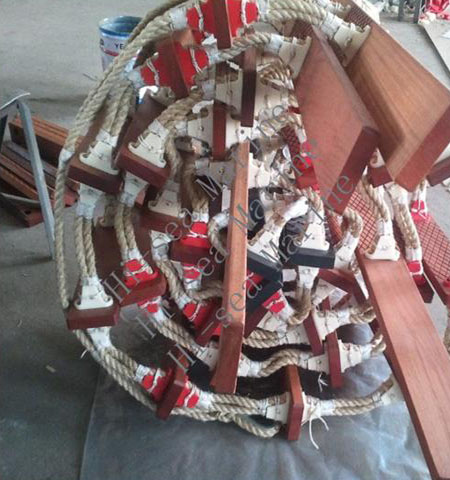

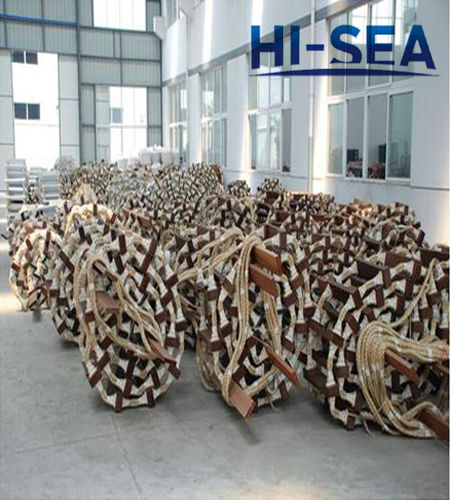

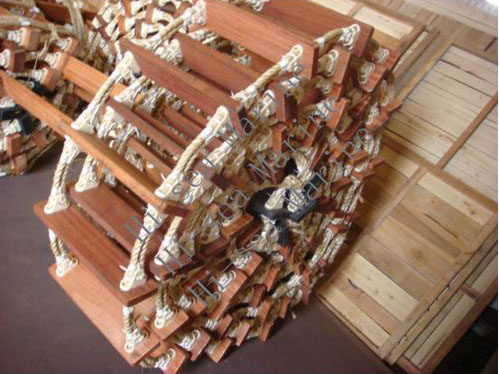

Marine Wooden Pilot Ladder

Ship Wood Pilot Ladder

Marine Wooden Pilot Ladder

Vessel Wooden Pilot Ladder

Marine Wooden Pilot Ladder

Boat Wood Pilot Ladder
