Marine Steel Accommodation Ladder

Marine Steel Accommodation Ladder

This product is a kind of gangway ladder with turnable treads. This marine accommodation ladder is made of steel, and it is used for the crew board and disembark from kinds of vessels such as bulk carriers, general cargo ships. The design of our accommodation ladder is in accordance with the ISO5488-79 standard and kinds of Classification Society¡¯s requirements. Therefore, certificates like CCS, BV, DNV, and KR are available according to customer¡¯s request.

Product features:

1. Material: steel

2. Style: fixed

3. Step: fixed arch step with slip-proof groove and anodized

4. Handrail: rope/ square steel/round aluminum

5. Standard: GB1391-87

6. OEM service available

Drawing and specifications:

Marine Steel Accommodation Ladder

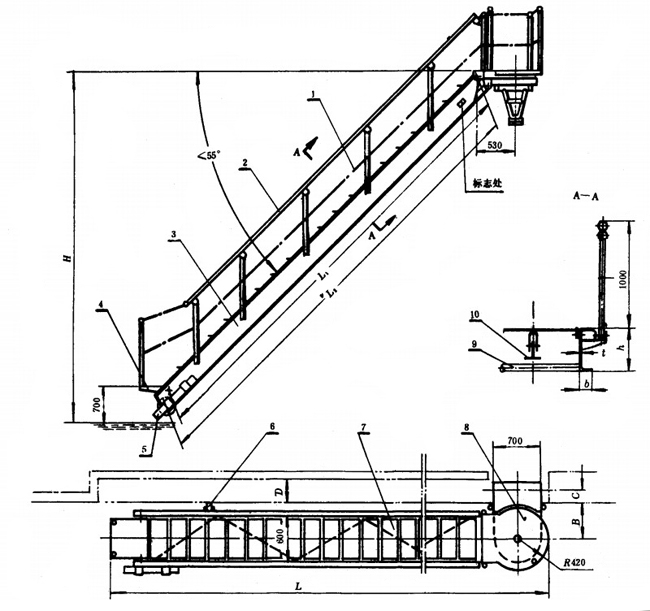

Drawing of Marine Steel Accommodation Ladder

Number of Steps

L

L1 (mm)

L2 (mm)

B

C

D

H (mm)

Weight (kg)

12

4995

3600

3800

555

260

350

3600

705

14

5995

4200

4400

555

260

350

4100

751

16

6195

4800

5000

555

260

350

4600

797

18

6795

5400

5600

555

260

350

5200

842

20

7395

6000

6200

555

260

350

5600

890

22

7995

6600

6800

605

260

350

6200

938

24

8595

7200

7400

605

260

350

6600

987

(26)

9195

7800

8000

605

310

400

7200

1144

28

9795

8400

8600

605

310

400

7600

1203

(30)

10395

9000

9200

605

310

400

8200

1262

32

10995

9600

9800

605

310

400

8600

1383

(34)

11595

10200

10400

655

310

460

9200

1445

36

12195

10800

11000

655

360

460

9600

1589

(38)

12795

11400

11600

655

360

460

10100

1653

40

13395

12000

12200

655

360

460

10500

1807

44

14595

13200

13400

655

410

510

11500

2031

48

15795

14400

14600

655

410

510

12500

2260

Identification example:

Number of steps=12 for marine steel accommodation ladder-----marine steel accommodation ladder 12 GB1391-87

Parts Name

Material

Name

Type Code

Standard

Girder

Marine Carbon Steel

2C

GB712-80

Step, Platform

Carbon Steel

A3

GB700-79

Handrail, Pole

Galvanized Welded Steel Pipe

A3, 20

YB242-63

Pin of Step

Stainless Steel or Bronze

2Crl3 (QA19-4)

GB1220-80 (YB458-71)

Roller

Assembly of rubber and carbon steel

----

----

Product displaying:

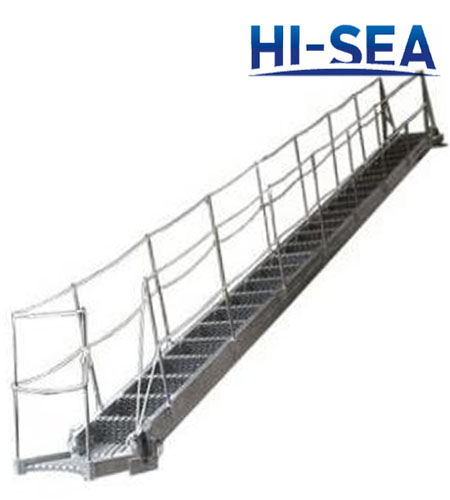

Marine Steel Accommodation Ladder

Vessel Steel Accommodation Ladder

Marine Steel Accommodation Ladder

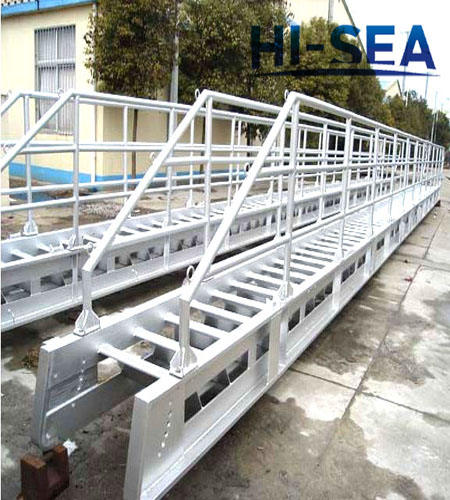

Steel Accommodation Ladder for Boat

Marine Steel Accommodation Ladder

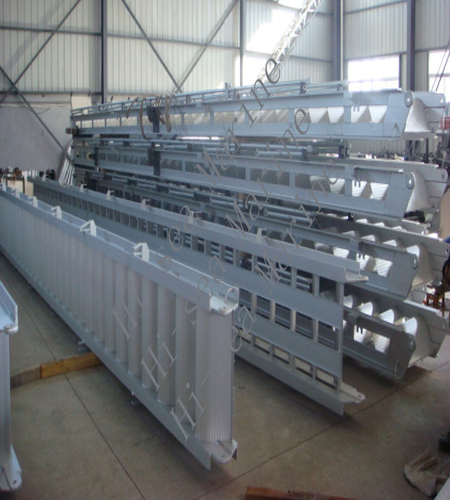

Ship Steel Accommodation Ladder

Marine Steel Accommodation Ladder

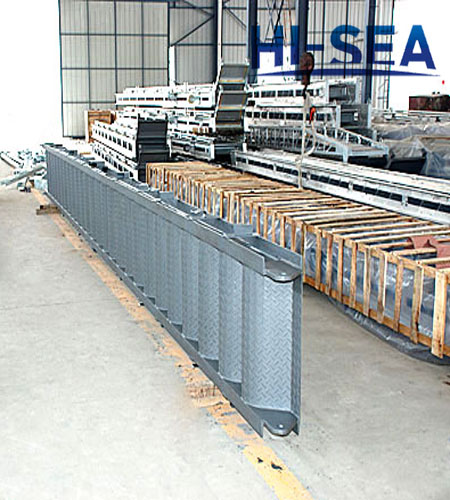

Turnable Treads Steel Gangway Ladder
